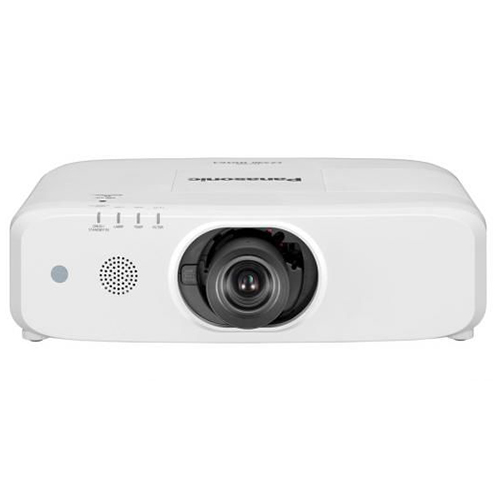

โปรเจคเตอร์ ยี่ห้อ Panasonic รุ่น PT-EX620
Compact and Lightweight Multi-Purpose Projectors Offer Flexibility and Economy
Excellent Picture Quality
- High brightness of up to 6,200 lm from a compact body
- Dynamic 10,000:1 contrast performance with iris
- High resolution up to XGA for detailed full HD images
- Daylight View Basic function ensures clear and vivid image quality in bright environments
- DICOM simulation mode*1 for medical presentations
- Color Adjustment function to correct color variations in multi-projector applications
Low TCO and Easy Maintenance
- Long lamp replacement cycle: up to 5,000 hours (Eco) / 4,000 hours (Normal)*2
- Reusable Eco Filter replacement extended to 15,000 hours*2
- Dust-resistant cabinet with one-way air flow design
- Easy access to lamp, filter, and lens when mounted on ceiling
- Eco management system effectively reduces power consumption
- Ultra-quiet 29 dB*3 operation on Eco mode
System Flexibility
- DIGITAL LINK supports transmission of uncompressed full HD video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)*4
- Powered lens shift, zoom, and focus via remote control
- Wireless projection with optional dongle (ET-WML100)
- Corner keystone & curved screen correction
- Vertical 360-degree projector cabinet rotation
- Range of optional lenses
- Network function via LAN for easy remote operation
- Supports free Multi Projector Monitoring & Control Software
Panasonic PT-EX620 1024 x 768 (XGA) 6200 lumens
- 0.64″ 4:3 LCD panel
- Brightness: 6200 lumens; Contrast ratio: 10000:1
- Resolution: 1024 x 768 (XGA)
- Lens shift function (vertical: ±50%, powered)
- Wide selection of optional lens
- Eco filter needs no replacement for 15000 hours
PROJECTOR DETAIL
| General | |
| Panel Type | 0.63″ LCD panel x 3 |
| Lamp | 320W UHM |
| Brightness | 6,200 lumens |
| Lens | Powered 1.8X zoom (throw ratio 1.32-2.44:1), power focus F 1.6-2.2, f1.71-31.7mm |
| Contrast (Full on / Full off) | 10,000:1 |
| Resolution (Native / maximum) | XGA |
| Video Compatibility | PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43 |
| Screen Size | 40″ – 400″ |
| Lens Shift | Vertical ±50% |
| Keystone Correction Range | Vertical ±35° or horizontal ±35% |
| Weight | approximately 8.4kg |
| Dimensions (W x H x D) | 498 x 145 x 398.3 mm |
| Power Consumption | 461W |
| Terminals | HDMI in (19-pin x 1) RGB1&2 in (BNC x 5, Mini D-sub 15-pin(female)x1) Video (pin jack x 1) Monitor out (Mini D-sub 15-pin x 1) Audio in (Pin Jack (L/R) x 1, M3 x 2 Audio out (M3 x 1) Serial in (D-sub 9-pin x 1) Remote in (M3 x 1) Remote in 2 (D-sub 9-pin x 1) LAN (RJ-45 x 1) LAN/Digital Link (RJ-45 x 1) USB-A (for optional wireless module ET-WML100 / DC output terminal for power supply) |
| Replacement Lamp | ET-LAEF100 |
| Optional Accessories | ET-RFE300 (Replacement filter) ET-PKE300B (Bracket assembly) ET-PKD120H (High ceiling mount bracket) ET-PKD120S (Low ceiling mount bracket) |
| Optional Lens : Zoom lens | ET-ELW30 (0.96-1.22:1) ET-ELT30 (2.23-4.02:1) ET-ELT31 (4.02-7.20:1) ET-ELW31 (0.74-0.96:1) |
| Standard Accessories | Software CD-ROM Wireless/wired remote control & batteries Power cord & holder |
