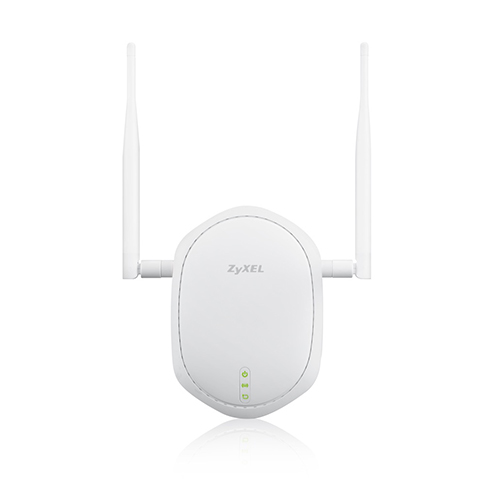

802.11n Long Range PoE Access Point ยี่ห้อ ZYXEL รุ่น NWA1100-NH
In the so-called BYOD trend, more than 80% of employees use at least one personally owned mobile device such as smart phones or tablets for business; however data transmission with these mobile devices is sometimes unstable because of their weak output power. To be the best accommodate mobile devices in the network, the new ZyXEL NWA1100-NH 802.11 b/g/n Long Range PoE Access Point features high output power and antenna gain to optimize wireless coverage and signal quality that are four times better for improved device connectivity. In addition, advanced management features also relieve tiresome configuration tasks for more than a few access points (APs). The NWA1100-NH is the best solution for businesses to streamline Wi-Fi connections.
- High output power of up to 28 dBm delivers extended coverage
- 2 external antennas with high 5 dBi gain optimized for mobile devices
- Fast 802.11n Wi-Fi with speed up to 300 Mbps improves transmission of large files or videos
- Easy deployment via client mode or repeater AP and IEEE 802.3af PoE support
- ZON Utility and ZAC minimize repetitive configuration processes and efforts
- Certified WPA2 Enterprise, access control management and user traffic control for strict network protection
| Model | NWA1100-NH |
|---|---|
| Product name | 802.11n Long Range PoE Access Point |
| Wireless frequency | 2.4 GHz |
| Radio | 1 |
| NWA1100-NH | ||
|---|---|---|
| Number of antenna | 2T2R MIMO | |
| Antenna gain | 5 dBi | |
| Frequency band | 2.4 GHz (IEEE 802.11 b/g/n)
|
|
| 802.11n premium features | 2×2 multiple-input multiple-output (MIMO) with two spatial streams Maximal Ratio Combining (MRC) 20- and 40-MHz channels PHY data rates up to 300 Mbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support |
|
| Typical transmit output power(Conducted) | US (FCC) 2.4 G | 28 dBm, 2 antennas |
| EU (ETSI) 2.4 GH | 18 dBm, 2 antennas | |
| Received sensitivity | 2.4 GHz
|
|
| NWA1100-NH | |
|---|---|
| Number of 10/100/1000M LAN | 1 |
| PoE | Yes |
| PoE power draw | 6 W |
| NWA1100-NH | |
|---|---|
| WLAN maximum net throughput | Up to 110 Mbps |
| WMM (Wi-Fi certified) | Yes |
| WEP | Yes |
| WPA/WPA2-PSK | Yes |
| WPA/WPA2-Enterprise | Yes |
| EAP types | PEAP, EAP-TLS, -TTLS, -SIM, -FAST, -AKA, -MD5 and -GTC |
| Number of multiple SSID | 8 |
| IEEE 802.1x | Yes |
| MAC filtering | Yes |
| Layer-2 isolation | Yes |
| WLAN access control list | Yes |
| RADIUS authentication | Yes |
| NWA1100-NH | |
|---|---|
| IPv6 support | Yes |
| VLANs | Yes |
| DHCP client | Yes |
| NWA1100-NH | |
|---|---|
| ZAC | Batch AP configuration Batch AP firmware upgrade Batch AP profile backup |
| ZON Utility |
|
| Standalone AP mode | Yes |
| CLI | Yes |
| SNMP | v1, v2c, v3 |
| NWA1100-NH | |
|---|---|
| Power supply | Input: AC 100 – 240 V -50/60 Hz 0.3 A; Output: DC +12 V 1 A |
| MTBF (hr) | 1,018,459.6 |
| NWA1100-NH | |
|---|---|
| Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3af |
| PoE | IEEE 802.3af |
| WLAN | 802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| NWA1100-NH | |
|---|---|
| Radio | FCC Part 15C ETSI EN 300 328, EN60601-1-2 DGT LP00 |
| EMC | FCC Part 15B EN 301 489-1, EN 301 489-17, EN 55022, EN 55024, EN 61000-3-2/-3/EN60601-1-2 BSMI CNS13438 |
| Safety | EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| NWA1100-NH | ||
|---|---|---|
| Item | Dimensions (WxDxH)(mm/in.) |
153 x 110 x 38/6.02 x 4.33 x 1.5 |
| Weight (g | 240/0.529 | |
| Packing | Dimensions (WxDxH)(mm/in.) |
285 x 210 x 72/11.22 x 8.26 x 2.83 |
| Weight (g/lb.) | 602/1.327 | |
| Included accessories | Power adapter Mounting screws |
|
| NWA1100-NH | ||
|---|---|---|
| Operating environment |
Temperature | 0°C to 60°C/32°F to 140°F |
| Humidity | 10% to 95% (non-condensing) | |
| Storage environment |
Temperature | 30°C to 70°C/-22°F to 158°F |
| Humidity | 10% to 95% | |
