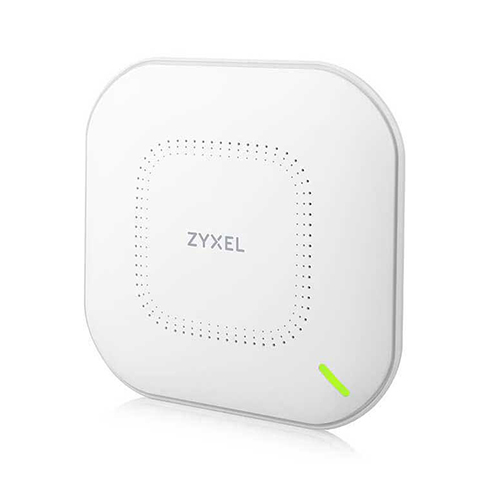

802.11ax (WiFi 6) Dual-Radio PoE Access Point ยี่ห้อ ZYXEL รุ่น NWA210AX

The NWA210AX is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. It embodies the full range of WiFi 6 technologies including UL/DL,OFDMA, MU-MIMO, and 1024 QAM, which enables the ultra-fast speed of 2975 Mbps. The NWA210AX 4×4 (5G) + 2×2 (2.4G) antenna design boasts the
most effective solution to guarantee that it provides smooth and consistently fast service to each client at all times. Also, it uses the second generation transmit beamforming technology incorporating Low End Sensitivity Improvements and Time Domain Channel Smoothing allowing data rates to increase for not only MU-MIMO clients, but for all existing ones as well.

The NWA210AX is not only efficient at delivering impressive speeds with its smooth and consistent delivery to wireless clients, but it is also efficient on power. The NWA210AX can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest WiFi 6 technology, experiencing first-hand the uncompromising multigigabit speed when coupling without the need of re-cabling.

• Dual-radio (dual 4×4 + 2×2) 802.11ax AP provides maximum data rate of 2975 Mbps
• OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios
• NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed
• Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
• The latest WPA3 security protocol provides safer connectivity
• Next generation beamforming technology delivers maximum coverage

Specifications

Models	NWA210AX
Product name
Description	802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard	IEEE802.11 ax/ac/n/g/b/a
MIMO	MU-MIMO
Wireless speed	2.4GHz: 575Mbps 5GHz: 2400Mbps
Frequency band	2.4 GHz USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth	20-, 40- ,80- and 160-MHz
Conducted typical transmit output power	US (2.4GHz/5GHz): 23/25dBm EU (2.4GHz/5GHz): 19/22dBm
RF Design
Antenna type	4×4 + 2×2 MIMO Embedded Antenna
Antenna gain	2.4GHz: Peak Gain 5dBi 5GHz: Peak Gain 6dBi
Minimum Receive sensitivity	Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering	Yes
WDS/Mesh	Yes (V6.10)
Fast roaming	Pre-authentication, PMK caching and 802.11r/k/v
DCS	Yes
Load balancing	Yes
Security
Encryption	WEP WPA WPA2-PSK WPA3
Authentication	WPA WPA2-Enterprise EAP IEEE 802.1X RADIUS authentication
Access management	L2-isolation MAC filtering
Networking
IPv6	Yes
VLANs	Yes
WMM	Yes
U-APSD	Yes
DiffServ marking	Yes
Management
Operating mode	Nebula Cloud managed Standalone
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration
Zyxel Wireless Optimizer	WiFi AP planning WiFi coverage detection Wireless health management
Web UI/ CLI	Yes
SNMP	Yes
MTBF(hr)	329,004
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 180 x 180 x 39/7.09 x 7.09 x 1.54 Weight (g/lb.) 545/1.20
Packing	Dimensions (WxDxH)(mm/in.) 329 x 212 x 64/12.95 x 8.35 x 2.52 Weight (g/lb.) 1065/2.35
Ethernet port	1 x 10/100/1000/2500M LAN 1 x 10/100/1000M LAN
Power	PoE (802.3)at: power draw 19 W DC input : 12 VDC 2A
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing)
Storage	Temperature -30°C to 70°C/-22°F to 158°F Humidity 10% to 90% (non-condensing)
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438
Safety	Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
