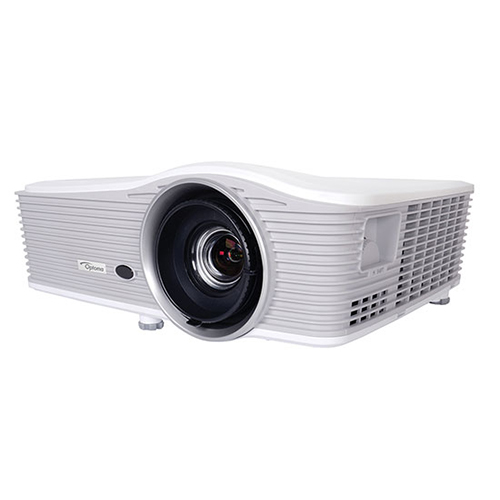

Optoma WU515 โปรเจคเตอร์ 6000 ANSI Lumens, WUXGA (1920 x 1200), Contrast 10,000:1, 3D, Four corner adjustment, Image Stacking, Hor/Ver. Lens Shift
- Geometry correction – 4 corner
- x1.8 Zoom with vertical and horizontal lens shift
- Horzontal and Vertical Keystone
- 6000 lumens WUXGA DLP projector
Producing Full HD quality images for an uncompromising level of detail, the WU515 is designed for professional installation environments. This powerful high-specification projector boasts a brightness of 6,000 lumens and features multiple digital connection options, with two HDMI inputs and DisplayPort. For more complex installations, this projector is equipped with a large zoom range, lens shift and a built-in geometric adjustment feature – ideal for image stacking, uneven walls or where a projector placement is awkward and needs to be installed at an angle.
| Display Technology |
Single 0.67” WUXGA DLP® Technology by Texas Instruments |
| Native Resolution |
WUXGA 1920 x 1200 |
| Brightness1 (Bright Mode) |
6000 ANSI Lumens |
| Contrast |
10,000:1 |
| Lamp Life2 Eco/Bright |
5000/3000 (hrs) |
| Throw Ratio 3 |
1.2~2.160:1, Offset: 100%~120% |
| Zoom Type |
1.8x Manual |
| Lens Shift |
Vertical: +20 Horizontal: +/-10% (constraints apply see user manual for details) |
| I/O Connectors |
2 x HDMI (1.4a 3D support) + MHL, DisplayPort, 2 x VGA (YPbPr/RGB), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic In, Audio Out 3.5mm, VGA Out, RS232, USB-A Power (1.5A), USB mouse/service, RJ45, 12V trigger, 3D-Sync, Wired remote |
| Speaker |
20 |
| Keystone Correction |
± 30° Vertical ± 30° Horizontal |
| Weight (kg) |
5.9 |
| Dimensions (W x D x H) (mm) |
424 x 344 x 160 |
| Aspect Ratio |
16:10 Native, 16:9/4:3 Compatible |
| Offset |
100% |
| Projection Screen Size |
27.9″~301.8″ Diagonal 16:10 |
| Projection Distance |
1.3m to 7.8 |
| Projection Lens |
F/2.5~3.39; f=17.63~31.36mm, 1.8x Manual Zoom |
| Uniformity |
80% |
| Computer Compatibility |
UXGA, SXGA+, HD, WXGA, XGA, SVGA |
| Video Compatibility |
PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| 3D Support |
Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate |
15.375~91.146 KHz |
| Vertical Scan Rate |
24~ 85 Hz (120Hz for 3D feature) |
| Displayable Colours |
1.07 Billion |
| Noise Level (Eco mode) |
28 |
| Power Supply |
100-240V, 50-60Hz |
| Power Consumption |
425W Bright mode, 340W Eco mode, <0.5W Standby mode |
| Lamp Type |
365W |
| Security |
Kensington Lock, Password Protection |
| Standard Accessories |
AC power cord, VGA cable, remote control, battery, quick start card, CD user manual |
| Optional Accessories |
DLP® Link™ 3D glasses, wireless, ceiling mount |
| Optional Wireless |
Yes |
| 360’ Operation |
Not supported |
| Portrait Mode |
Not supported |
| RoHS |
Compliant |
| Features |
V/H Lens Shift, Crestron RoomView®, PJ-Link |
|
