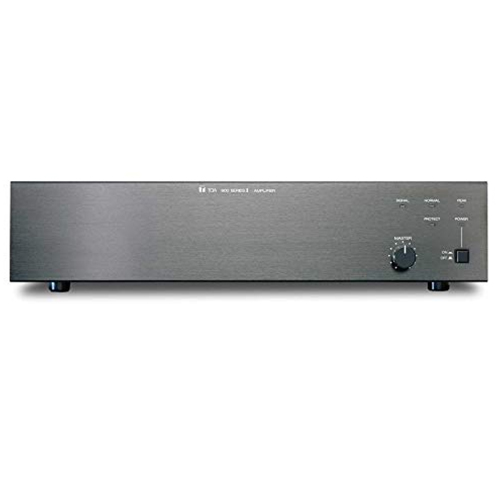

เครื่องขยายเสียง ยี่ห้อ TOA รุ่น P-924MK2 HH
| Type | Power amplifier |
|---|---|
| Power Requirement | AC mains, 220 – 230/240 V, 50/60 Hz |
| Power Consumption | 490 VA |
| Output Power | (D) 240 W RMS (T) 220 W RMS |
| Power Band Width | (D) 20 – 20,000 Hz, 0.5 % THD (T) 50 – 20,000 Hz, 0.5 % THD |
| Frequency Response | (D) 20 – 20,000 Hz, ±1 dB (T) 20 – 15,000 Hz, ±1 dB, (T) 20 – 20,000 Hz, +1 dB, -3 dB |
| T.H.D | 0.01 % at 1 kHz, rated output |
| Inputs | One Input Port: Port accepts any input module execpt T-01. One Direct Input ※ Use of direct input prohibits use of modular input port. |
| Input Sensitivity /Impedance | Input Port: 100 mV or 1000 mV (switchable) /10 kΩ Direct Input: 100 mV or 1000 mV (switchable) /10 kΩ |
| Outputs(T)=Transformer (D)=Direct | Main (T): 8 Ω, 70 and 100 volts, balanced Main (D): 4 Ω, unbalanced |
| Output Regulation(1kHz) | (D) Less than 0.5 dB, no load to full load (T) Less than 1.0 dB, no load to full load |
| S/N Ratio(Band Pass 20-20,000Hz) | Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV (100 mV) position: 90 dB |
| Controls | 1 Input gain control 1 Input level switch 1 Power ON/OFF switch 1 Low-Cut switch |
| Indicators | 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED |
| Protection | Self-protection, with 2AC fuses and 2DC fuses (inside) |
| Connectors | Input: Card-edge connector and screw-terminal strip Output: Screw-terminal strip AC inlet: 3-pin grounding type |
| Temperature Range | -10 ℃ to +60 ℃ |
| Finish | Black |
| Dimensions | 420 (W) × 151.3 (H) × 334.2 (D) mm |
| Weight | 19.5 kg |
| Accessory | Volume control cover (YA-920)……1 |
| Option | Rack mounting bracket (MB-35B) |
