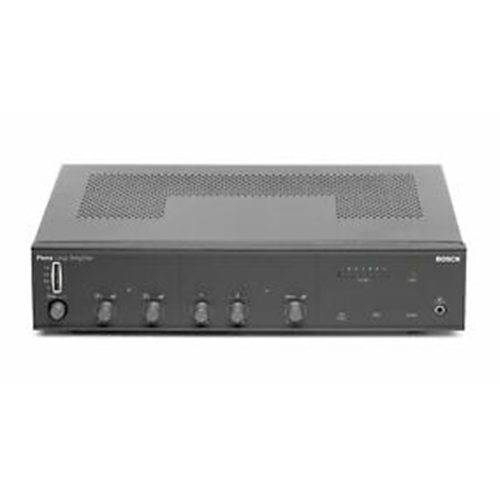

เครื่องขยายเสียง ยี่ห้อ BOSCH รุ่น PLN-1LA10
- High power, current driven amplifier
- Two microphone/line inputs, one priority input (100 V)
- Selectable frequency range and tone controls
- Limiter and automatic gain control (AGC)
Key Specifications
| Voltage | 230/115 VAC, ±10%, 50/60 Hz |
| Inrush current | 7 A at 230 VAC / 14A at 115 VAC |
| Max power consumption | 500 VA |
| Output current | 10 A |
| Frequency response | 50 Hz to 10 kHz (+1/-3 dB at -10 dB ref. rated output) |
| Distortion | <1% at rated output power, 1 kHz |
| Bass control | -8/+8 dB at 100 Hz |
| Treble control | -8/+8 dB at 10 kHz |
| Mic/line input | 2 x |
| Connector | 3-pin XLR, balanced mic/line level (switchable) |
| Sensitivity | 1 mV / 1 V (mic/line) |
| Impedance | >1 kohm |
| Dynamic Range | 100 dB |
| S/N (flat at max volume) | 75 dB |
| Headroom | 25 dB |
| Phantom power supply | 16 V (switchable) |
| VOX functionality | Input 1 (switchable) mutes input 2 |
| VOX sensitivity | -10 dB ref nominal input |
| Connector | Screw |
| Sensitivity | 100 V, transformer balanced |
