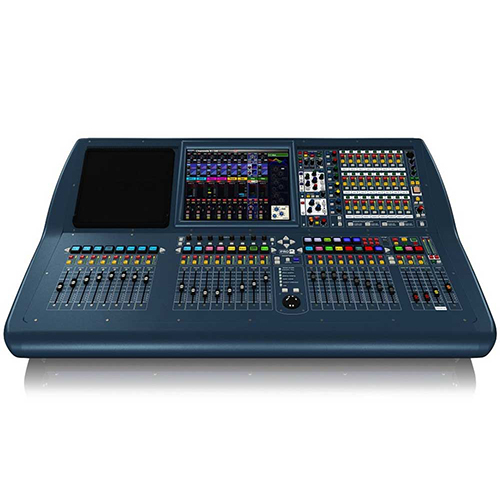

Digital Console ยี่ห้อ MIDAS รุ่น PRO X-CC-IP
Live Digital Console Control Centre with 168 Input Channels, 99 Mix Buses and 96 kHz Sample Rate
Features
- Live performance digital console control centre with up to 168 simultaneous inputs
- 99 time-aligned and phase-coherent mix buses
- HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
- HyperMAC router with 192 bidirectional channels over copper and optical fibre
- Provides dual redundant snake connection to the NEUTRON Audio System Engine
- Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
- 10 VCA (variable control association) and 8 POPulation groups
- Up to 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 24 simultaneous internal multi-channel effects
- 29 Midas PRO motorised 100 mm faders
- 2 daylight viewable 15″ full colour TFT display screens
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
Specification
System Specifications
| Sampling rate | 96kHz |
| Latency delay | <2 ms (Input to Master output with no latency compensation) |
| Dynamic range | 110 dB, 22 Hz to 22 kHz |
| Maximum voltage gain | 80 dB, Inputs to Subgroups and Masters 86 dB, Inputs to Aux and Matrix |
| Crosstalk | -100 dB physically adjacent input channels |
| Fader/pan cut off | -100 dB |
| Frequency Response | 0 dB to -1.0 dB, 20 Hz to 20 kHz |
| Gain Error @ 1kHz | ±1.0 dB |
Input CMRR
| 0 dB gain | -80 dB |
| +40 dB gain | -90 dB |
Distortion @ 0 dBu
| 0 dB gain | 0.01% |
| +40 dB gain | 0.03% |
Distortion @ +20 dBu
| 0 dB gain | 0.03% |
| +40 dB gain | 0.03% |
Noise Floor
| 0 dB gain | -89 dBu, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain | -87 dBu, 22 Hz to 22 kHz (unweighted) |
Equivalent Input Noise (EIN)
| 0 dB gain | -89 dBu, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain | -127 dBu, 22 Hz to 22 kHz (unweighted) |
Dynamic Range
| 0 dB gain | 110 dB, 22 Hz to 22 kHz (unweighted) |
| +40 dB gain | 108 dB, 22 Hz to 22 kHz (unweighted) |
Analogue Audio System Inputs
| Mic/Line Inputs | |
| Talk Mic Input | |
| Talk Back Input |
Analogue Audio System Outputs
| Line Outputs | |
| Monitor Outputs | |
| Assignable Outputs | |
| Talk Output | |
| Headphone Output |
Digital Audio System Inputs and Outputs
| AES3 Inputs | |
| AES3 Outputs | |
| AES50 Audio | |
| Snake (Copper) | |
| Snake (Fibre) | |
| Ethernet Control Data | |
| Word Clock Input | |
| Word Clock Output | |
| AES3 Sync Input | |
| AES3 Sync Output |
Other Interfaces
| External Ethernet Tunnel | |
| Screen Outputs | |
| KVM Inputs | |
| USB Interface | |
| MIDI Interface | |
| Displays |
Power
| Power Supplies | |
| Power Consumption |
Physical
| Dimensions | 1365 mm wide x 940 mm deep x 434 mm high (53.7″ x 37.0″ x 17.1″) |
| Net weight | 120 kg (264 lbs) |
| Operating temperature range | +5°C to +40°C |
| Storage temperature range | -20°C to +60°C |
