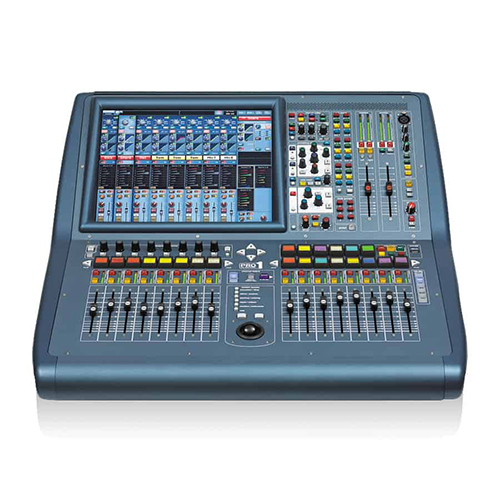

Digital Console ยี่ห้อ MIDAS รุ่น PRO1-TP
Live Digital Console with 48 Input Channels, 24 Midas Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case
Features
- Live performance digital console with up to 48 simultaneous input channels
- 24 award-winning Midas microphone preamplifiers
- 27 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
- Touring grade road case featuring marine grade plywood, aluminium extrusions and composite density protective foam
- 8 VCA (Variable Control Association) and 6 POPulation groups
- Up to 28 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 6 multi-channel digital signal processing effects engines
- 18 Midas PRO motorised 100 mm faders
- Daylight viewable 15″ full colour TFT display screen
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Auto-ranging universal switch-mode power supply
Specification
System Specifications
| Sampling frequency | 96 kHz |
| Latency | <2 ms input to master (no compensation) |
| Dynamic range | 107 dB, 22 Hz to 22 kHz (no pre-emphasis) |
| Maximum voltage gain | 80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix |
| Crosstalk at 1 kHz | -100 dB physically adjacent input channels |
| Crosstalk at 10 kHz | -90 dB physically adjacent input channels |
| Fader/pan cut off at 1 kHz | -100 dB |
| Fader/pan cut off at 10 kHz | -100 dB |
| Display screen | 1 x 15″ daylight-viewable colour screen |
| Dimensions (H x W x D) | 685 x 722 x 288.6 mm (27.0 x 28.4 x 11.4″) |
| Net weight | PRO1 control centre: 21.5 kg |
| Shipping weight | Touring (in flight case): 97.5 kg Install (in carton): 28.7 kg |
| Power requirements | 100 V to 240 V a.c. ±10%, 50 to 60 Hz |
| Operating temperature range | +5°C to +45°C |
| Storage temperature range | -20°C to +60°C |
Frequency Response
| 0 dB Gain | |
| 40 dB Gain |
Gain Error at 1 kHz
| 0 dB Gain | |
| 45 dB Gain |
Input CMRR
| 0 dB Gain | |
| 45 dB Gain |
Distortion at 0 dBu
| 0 dB Gain | |
| 45 dB Gain |
Distortion at +20 dBu
| 0 dB Gain | |
| 45 dB Gain |
Mixing Noise (All Bus Types) 22 Hz to 22 kHz Unweighted
| 12 Inputs | |
| 12 Inputs | |
| 24 Inputs | |
| 24 Inputs | |
| 48 Inputs | |
| 48 Inputs |
Dynamic Range 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
| 45 dB Gain |
PRO1 Control Surface – DSP/Router System Inputs and Outputs
| System connectors | 6 x AES50 (24 channels of bidirectional digital audio) on etherCon XLR |
| Word clock IN connector | BNC |
| Word clock OUT connector | BNC |
| Video sync IN connector | BNC |
| AES3 sync IN connector | 3-pin XLR |
| AES3 sync OUT connector | 3-pin XLR |
PRO1 Control Surface – Analogue Audio System Inputs
| Connector | 3-pin XLR balanced |
| A/D converter | 24-bit, 96 kHz with 128 times oversampling |
| Talkback connector | 3-pin XLR balanced line |
| Talk connector | 3-pin XLR balanced mic with +48 V phantom power |
PRO1 Control Surface – Analogue Audio System Outputs
| Connector | 3-pin XLR balanced |
| D/A converter | 24-bit, 96 kHz with 128 times oversampling |
| Monitor connector | 3-pin XLR balanced line |
| Talk connector | 3-pin XLR balanced line |
| Headphone connector | ¼” Jack (stereo) |
PRO1 Control Surface – Digital Audio System Inputs and Outputs
| Input connector | AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rates | Accepts any frequency 32 kHz – 96 kHz |
| Bypass | Sample rate converter can be bypassed |
| Output connector | AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rate | 48 kHz, 96 kHz, or auto-tracking to inputs |
| Bypass | Sample rate converter can be bypassed |
| Word length | 16, 20 or 24-bit |
PRO1 Control Surface – Control Data System Inputs and Outputs
| System connector | etherCon XLR |
PRO1 Control Centre – Miscellaneous Inputs and Outputs
| Monitor output connector | DVI/DP+ |
| USB host connection | USB 2.0 full speed (12.0 Mbs) 5 V, 1A maximum load |
| Lamp connector | 4-pin XLR |
| MIDI | In, Out and Thru on 5-pin DIN |
| Footswitch connector | ¼” Jack |
Analogue Input Characteristics
| Surface I/O | |
| Talk Mic | |
| Monitor |
Analogue Output Characteristics
| Surface I/O | |
| Talk Out | |
| Monitor | |
| Headphones |
Digital I/O Characteristics
| AES3 | |
| AES3 | |
| AES50 |
Miscellaneous Digital Characteristics
| Word Clock | |
| Word Clock | |
| AES sync | |
| AES sync |
Signal Path Noise 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
| 45 dB Gain |
