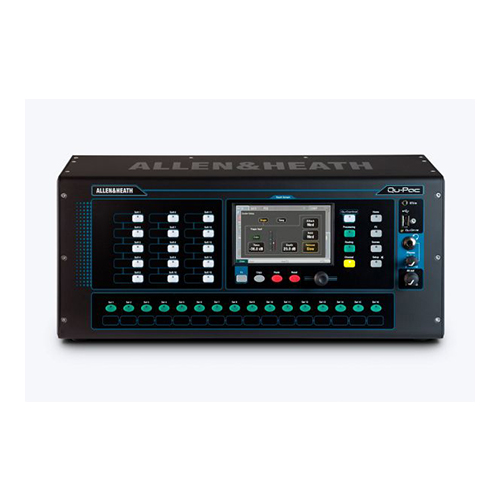

มิกเซอร์ ยี่ห้อ Allen & Heath รุ่น QU-Pac

Portable 22 in / 12 out Digital Mixer with remote wireless control

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.

With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.

• Our Best-Selling Digital Mixing Platform
• Inputs: 16 Mono / 3 Stereo
  • Expandable to 32 Mono / 3 Stereo
• Mixes: 4 Mono / 4 Stereo / LR
  • Expandable to 4 Mono / 7 Stereo / LR
• Matrix: 2 Stereo
• 32×32 USB Audio Interface
• Comprehensive Channel Processing and FX
• Intuitive Interface with Full Colour Touchscreen
• Range of Remote Expanders
• Suitable for:
  • Live
  • Studio
  • Streaming
  • A/V Install
  • Corporate Audio
  • Houses of Worship

FEATURE

• 19” Rack Mountable
• 16 local Mono Mic/Line Inputs (TRS + XLR)
• Recallable AnaLOGIQ^TM Preamps
• 3 Stereo Inputs (TRS)
• 12 local Mix Outputs (XLR)
• Expandable to 38 input, 24 out using dSNAKE AudioRack
• 4 Stereo Groups (switchable to Mix mode)
• Up to 11 Monitor Mixes (4 mono + 7 stereo)
• 4 FX Engines
• 4 dedicated FX Sends / Returns
• 4 Mute Groups
• 4 DCA Groups
• AES Digital Out
• 32×32 USB Audio Interface
• dSNAKE^TM Remote Audio Port
• 800×480 Touchscreen
• 15 Soft Keys
• 16 Custom Select keys
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
• Automatic Mic Mixer
• Channel Ducker on all Inputs
• ProFactory Mic Presets
• RackFX Library
• Built-in Signal Generator
• RTA with Peak Band indication
• Spectrogram to aid feedback elimination and room acoustics
• Qu-Drive Direct Multitrack Recording / Playback on USB drives
• DAW MIDI Control
• Qu-Pad fully-featured iPad App
• Qu-You iPhone / Android personal monitoring app
• Qu-Control customisable iOS app for simple wireless control
• Compatible with ME Personal Mixing System
