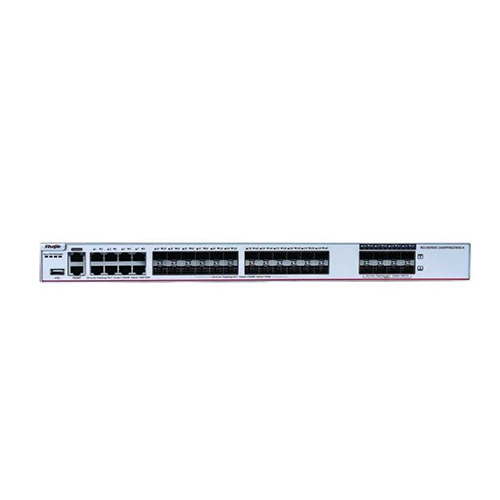

24-Port PoE Switch ยี่ห้อ Ruijie รุ่น RG-S5760C-24SFP/8GT8XS-X
|
Product Specification |
|
|
Overview |
Ruijie RG-S5760C-24SFP/8GT8XS-X L3-Managed Switch 24 Port SFP, 8 Port SFP+ 10Gbps และ 8 Port Lan (Combo), รองรับ Dynamic Routing OSPF BGP 24K Routing Table, รองรับ Dynamic Routing OSPF BGP, L3 Multicast |
| Fixed Ports | 24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports),
8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Product Features | |
| VLAN | The following are supported: 4K 802.1Q VLAN Port based VLAN Private VLAN Voice VLAN GVRP |
| QinQ | Basic QinQ Flexible QinQ |
| Link Aggregation | LACP(802.3ad) |
| Spanning Tree | The following are supported: STP, RSTP, and MSTP |
| DHCP | The following are supported: DHCP Server DHCP Client DHCP Snooping DHCP Relay IPv6 DHCP Server IPv6 DHCP Snooping IPv6 DHCP Client IPv6 DHCP Relay |
| Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
| Maximum Aggregation Port (AP) | 128 |
| IPv6 Basic Protocol | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless auto-configuration, and Path MTU Discovery |
| IP Routing | The following are supported: Static routing RIP and RIPng OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6 BGP4, and BGP4+ Equivalent routing Packet-based load balancing, and flow-based load balancing MCE |
| Multicast | The following are supported: IGMP v1, v2, v3, and IGMP proxy IGMP v1, v2 and v3 Snooping IGMP filtering, and IGMP fast-leave PIM-DM, PIM-SM, and PIM-SSM MLD Snooping, and MLD PIM for IPv6 |
| MPLS | MPLS L3VPN |
| ACL | The following flexible and diversified hardware ACLs are supported: Standard IP ACLs (IP-based hardware ACL) Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs) MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)Time-based ACLs Expert-level ACLs (hardware ACLs based on flexible combinations of Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time) ACL80 IPv6 ACLs |
| QoS | The following are supported: Port traffic identification Port traffic rate limiting 802.1p/DSCP/ToS traffic classification Eight priority queues per port SP, DRR, SP+DRR, RED/WRED queue scheduling mechanisms |
| Security Features | The following are supported: 3-tuple binding (IP address, MAC address, and port)3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC-based 802.1x authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP-check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection RADIUS and TACACS+ |
| Security Features | AAA for device login management SSH BPDU Guard IP Source Guard CPP, and NFPP Port protection |
| Management Features | SNMP, CLI (Telnet/Console), RMON, SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, and Traceroute v6 This switch supports sFlow, and samples its traffic information by using the random sampling technology of data flows. |
| High Reliability | The following are supported: VSU (virtualization technology, which virtualizes multiple devices into one), GR for RIP/OSPF/BGP and other routing protocols, BFD detection, ERPS (G.8032), REUP, RLDP, power supply 1+1 backup, and the hotswappable function supported on the power supply |
| Zero Configuration | CPE WAN Management Protocol (CWMP(TR069)) |
| PoE | Unsupported |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 77 W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0oC to 45oC(without an expansion card), 0oC to 40oC (with an expansion card) Storage temperature: -40oC to 70oC |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
|
ประกัน |
3 ปี |
