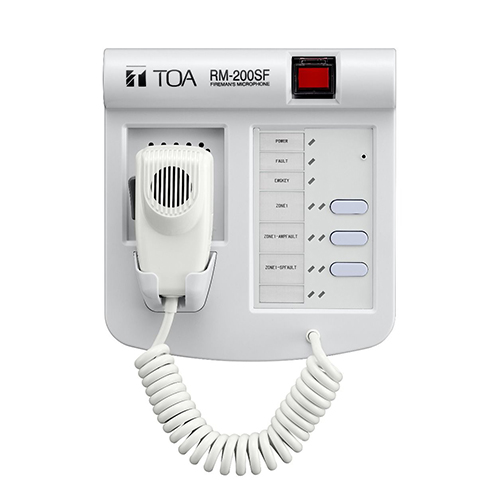

ไมโครโฟนสำหรับการออกอากาศฉุกเฉิน ยี่ห้อ TOA รุ่น RM-200SF
The RM-200SF is a Fireman’s Microphone of the matrix system. It is equipped with an Emergency key,permitting it to be used as a remote microphone for emergency broadcast. Zone selection and microphoneannouncement can be made at the time of emergency broadcast. It offers a surveillance function todetect failures including microphone element failure. The RM-200SF has three function keys that can beset as individual or group selection keys, and each key is linked with the corresponding two indicators.Connecting the optional RM-210, RM-320F Extension units to the RM-200SF expands the number offunction keys and indicators in blocks of ten.
| Power Source | 24 V DC (operating range: 15 – 40 V DC, supplied from the audio input unit) |
|---|---|
| Current Consumption | 240 mA or less |
| Audio Output | 0 dB*, transformer-balanced |
| Distortion | 1 % or less |
| Frequency Response | 200 Hz – 15 kHz |
| Signal to Noise Ratio | 55 dB or more |
| Microphone | Unidirectional dynamic microphone with talk key, AGC (ON/OFF switchable), microphone element failure detectable by using a built-in small oscillator |
| Volume Control | Microphone volume control, Monitor speaker volume control |
| Connection Cable | Shielded CPEV cable (each one pair of audio wire, data wire, monitor/control wire, and power supply wire) or Shielded Category 5 twisted pair cable (CAT5-STP) or greater, M3 screw terminal |
| Maximum Cable Distance | 800 m (2624.67 ft) |
| No. of Connectable Extension units | Max. 5 units (RM-210) Max. 4 units (RM-320F) |
| Monitor Speaker | Built inside |
| Operation | Emergency key, Function keys, CPU switch, Reset switch |
| Indication | Status indicators, Power indicator, Failure indicator, CPU indicator, Selection indicators, Microphone indicator, Broadcast status indicator |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | ABS resin, blueish gray (PANTONE 538 or its equivalent) |
| Dimensions | 200 (W) × 215 (H) × 95 (D) mm (7.87″ × 8.46″ × 3.74″) |
| Weight | 1.48 kg (3.26 lb) (with wall mounting bracket unit) |
| Accessory | EMC clamp…1, Wall mounting bracket unit…1, Wall mounting screw…2, Box mounting screw…2 |
| Option | Remote microphone extension: RM-210 (only for SX-2000 systems) Fireman’s microphone extension: RM-320F (only for VX-3000 systems) |
| Applicable Box | Wall mounting box: YS-11A |
