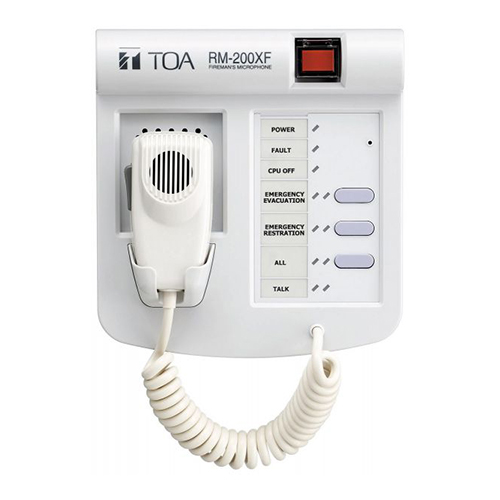

Fireman’s Microphone ยี่ห้อ TOA รุ่น RM-200XF
A dedicated microphone for the VX-2000 system, the RM-200XF is designed to be exclusively used for emergency broadcast, however it can be used for general-purpose broadcast applications as well.
Specification
| Power Source | 24 V DC (operating range: 16 – 40 V DC) |
|---|---|
| Current Consumption | 200 mA or less (RM-200XF), 850 mA (with 10 RM-210s connected) |
| Audio Output | 0 dB*, 600 Ω, balanced |
| Hand-Held Microphone | Dynamic microphone, Function switch (default: Press-to-talk), Microphone element fault detection |
| Distortion | 1 % or less |
| Frequency Response | 200 Hz – 15 kHz |
| S/N Ratio | 55 dB or more |
| Internal Monitor Speaker | 200 mW |
| Volume Control | Microphone volume control, Monitor speaker volume control |
| Number of Function Keys | 5 (including Hand-held microphone’s switch), extendable up to 105 (with 10 RM-210s connected) |
| Key Extension | 10 keys extension per RM-210, EXTENSION connector |
| Number of Connectable Units | 4 |
| Communication System | LONWORKS Twisted Pair Free Topology Transceiver |
| Connection Cable and Connector | Category 5 STP cable, plug-in screw connector |
| Communication Distance | 500 m (Free topology wiring) |
| Finish | ABS resin, blueish gray (PANTONE 538 or its equivalent) |
| Dimensions | 200 (W) × 215 (H) × 82.5 (D) mm (excluding the coiled cord) |
| Weight | 1.2 kg |
| Accessory | Plug-in screw terminal…1, Wall mounting bracket…1, Wall mounting screw…2, Box mounting screw…2 |
| Applicable Box | YS-11A |
