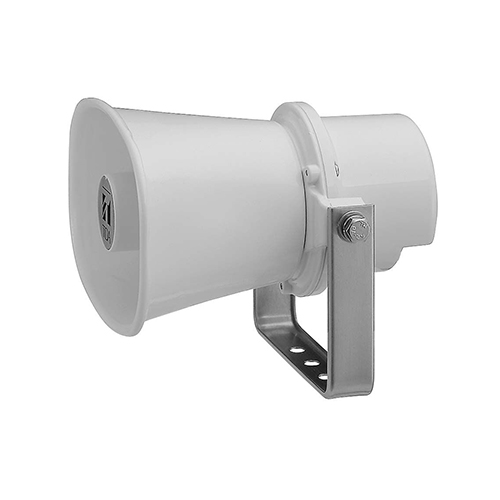

The SC-615M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

Specifications

• Rated Input:       15 W
• Line Voltage:      100 V line or 70 V line
• Rated Impedance:    100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)  /  70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
• Sound Pressure Level:    112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
• Frequency Response:     280 Hz – 12.5 kHz
• Dust/Water Protection: IP65
• Polarity :   Hot: Black, Com: White
• Operating Temperature :  -20 ℃ to +55 ℃ (must be free from dew condensation)
• Finish:   Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
• Dimensions:  222 (W) × 179 (H) × 234 (D) mm
• Weight: 1.3 kg
• Option:       Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
