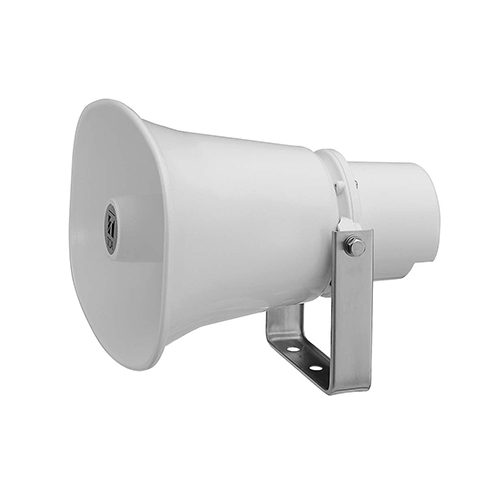

ลำโพงฮอร์น ยี่ห้อ TOA รุ่น SC-630

The SC-630 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

Specification

• Rated Input:       30 W (Mobile Mount use: 15 W)
• Rated Impedance:           8 Ω
• Sound Pressure Level:    113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
• Frequency Response:     250 Hz – 10 kHz
• Dust/Water Protection: IP65
• Polarity :   Hot: Black, Com: White
• Operating Temperature:     -20 ℃ to +55 ℃ (must be free from dew condensation)
• Finish:   Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
• Dimensions:       285 (W) × 227 (H) × 277 (D) mm
• Weight:  1.7 kg
• Option: Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
