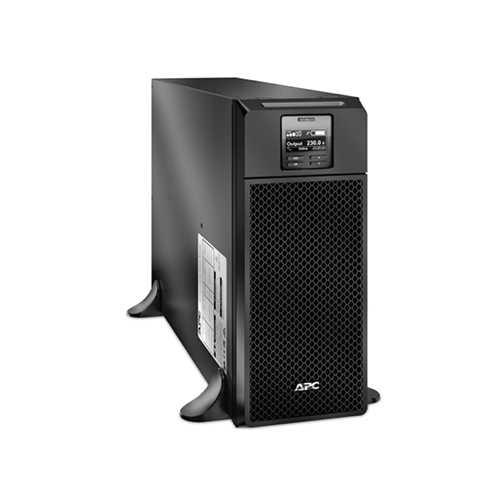

เครื่องสำรองไฟฟ้า UPS ยี่ห้อ APC รุ่น SRT6KXLI-STR
- High density, double-conversion on-line power protection with scalable runtime
- Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card
- Smart UPS RT – UPS ที่เหมาะสำหรับอุปกรณ์ Core Switch, Server, Storage, เครื่องมือทางการแพทย์, Data Center ที่ต้องการคุณภาพไฟฟ้าสูง (3 Phase : 1 Phase และ 3 Phase : 3 Phase) ***Tower & Rack***
- Technology: True Online
- รับประกัน: 2 ปี Onsite 8×5
Output
Max Configurable Power (Watts)
6.0kWatts / 6.0kVA
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 – 70 Hz Auto-sensing
Input voltage range for main operations
100 – 275 Adjustable (half load), 160 – 275V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
192 V
Replacement Battery
APCRBC140
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
597 Watts
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-SRT-6000VA-230V
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
Communications & Management
Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
480Joules
Physical
Maximum Height
432MM, 43.2CM
Maximum Width
174MM, 17.4CM
Maximum Depth
719MM, 71.94CM
Net Weight
60.0KG
Shipping weight
67.0KG
Shipping Height
370MM, 37.0CM
Shipping Width
610MM, 61.0CM
Shipping Depth
960MM, 96.0CM
Color
Black
Units per Pallet
6.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
1300.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Standard warranty
2 years Onsite 8×5 PM 4 Time / 2 Year
