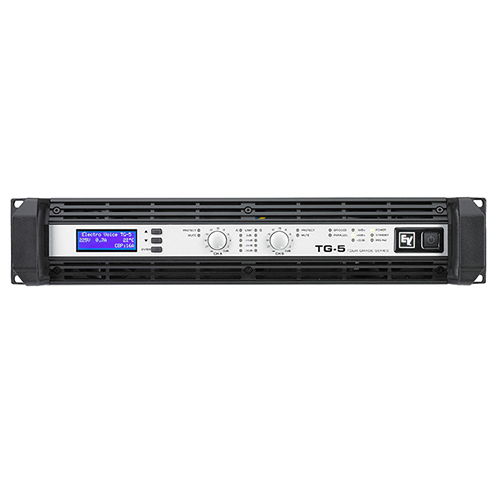

เครื่องขยายเสียง ยี่ห้อ ELECTRO-VOICE รุ่น TG5
Features:
- High-power performance for top-level tours
- Rugged, lightweight package
- 3500 W per channel (2 Ω)
- Grounded Bridge Class-H design
- Switch-mode power supply
- Microprocessor-controlled
- Front LCD panel for operation-mode setup and monitoring
- Slot for optional RCM-26 IRIS-Net-compatible DSP and control module
- 11-level protection package
- Only 32 lbs (14.5 kg)
Specifications
| A/D Conversion | 24 Bit linear, Sigma-Delta, 128 times oversampling |
| Amplifier Gain | 41.5/35/32 dB Switchable |
| Analog Inputs | Yes |
| CAN Bus Interface | 10 – 500 kbaud, 2x RJ-45 (IRIS-Net Control) |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 3500 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 2500 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 1500 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 2100 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 1050 Watts |
| Control Protocol | CAN Bus |
| D/A Conversion | 24 Bit, Sigma-Delta, 128 times over-sampling |
| Data Format | 24 Bit linear A/D and D/A conversion, 48 Bit processing |
| Digital Inputs | Optional with RCM-26 |
| DIM 30 | 0.02 % |
| FIR-Drive | Optional with RCM-26 |
| GPIO Control Ports | 1 x 6-pole Euro block, 2 control inputs, 2 control outputs, (+5 V, 200 mA/GND) |
| Impedance | 2/4/8 Ω |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | 0/+6/+9 Selectable |
| Intermodulation Distortion (SMPTE) | 0.05 % |
| Internal Processing | 2 DSPs (150 MHz, 300 MIPS) |
| Maximum Bridged Output 4Ω | 7000 Watts |
| Maximum Bridged Output 8Ω | 5000 Watts |
| Network Control (IRIS-Net) | Optional with RCM-26 |
| Power Consumption | 1450 W |
| Power Supply | 100-240 V, 50-60 Hz |
| Sample Rate | 48 kHz |
| Sample Rate Conversion (SRC) | 32 kHz – 192 kHz, internal Sample-Rate- Converter |
| Signal-to-Noise Ratio (A-weighted) | 111 dB |
| Slew Rate | 35 V/µs |
| Topology | Class-H grounded bridge |
| Total Harmonic Distortion | 0.05 % |
| Height | 2RU 88.1 mm (3.47″) |
| Width | 482.6 mm (19″) |
| Depth | 512 mm (20.16″) |
| Weight Net | 14.5 kg (31.97 lbs) |
