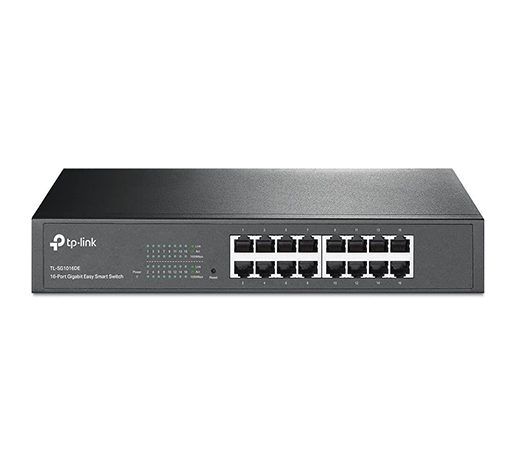

POE Switch 16 Port ยี่ห้อ TP – Link รุ่น TL-SG1016DE
| Brand | TP-LINK |
| Model | TL-SG1016DE |
| Network Interface | 16 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Switching Capacity | 32Gbps |
| Transmission Method | Store-And-Forward |
| MAC Address Table | 8K |
| Forwarding Rate | 23.8Mpps |
| Jumbo Frame | 9KB |
| Packet Buffer Memory | 512KB |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Features | L2 Features : IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| Fan Quantity | Fanless |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 11.73W (220V/50Hz) |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | TL-SG1016DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| Package Dimension | (W x D x H) : 25.00 x 41.00 x 8.00 cm |
| Gross Weight | 2.00 KG |
| Volume | 8,200.00 cm3 |
