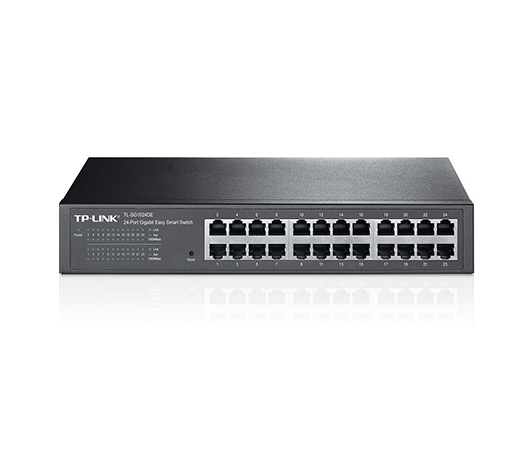

POE Switch 24 Port ยี่ห้อ TP – Link รุ่น TL-SG1024DE
- Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface : 24x 10/100/1000Mbps RJ45 Ports ( AUTO Negotiation/AUTO MDI/MDIX )
- Switching Type : Layer 2 switches
- Switching Capacity : 48Gbps
- Casing : Steel
- Package Contents
- TL-SG1024DE
- Power Cord
- Quick Start Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
| Brand | TP-LINK |
| Model | TL-SG1024DE |
| Network Interface | 24 x 10/100/1000Mbps RJ45 Ports |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Switching Capacity | 48Gbps |
| Transmission Method | Store-And-Forward |
| MAC Address Table | 8K |
| Forwarding Rate | 35.7Mpps |
| Jumbo Frame | 9KB |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Fan Quantity | Fanless |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum : 14.86W (220V/50Hz) |
| Environment | Operating Temperature : 0°C~40°C (32°F~104°F) Storage Temperature : -40°C~70°C (-40°F~158°F) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | TL-SG1024DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| Dimension | (W x D x H) : 29.40 x 18.00 x 4.40 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 8.00 x 40.00 x 25.00 cm |
| Gross Weight | 2.00 KG |
| Volume | 8,000.00 cm3 |
