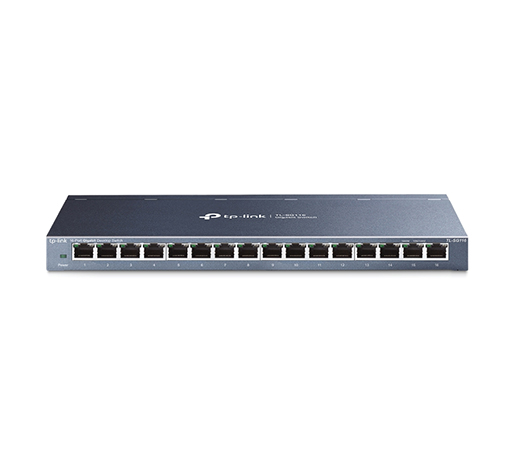

POE Switch 16 Port ยี่ห้อ TP – Link รุ่น TL-SG116
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p |
| Interface | 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 12VDC / 1.0A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm) |
| Max Power Consumption | 10W(220V/50Hz) |
| Max Heat Dissipation | 34.12BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC ,RoHS |
| Package Contents | 16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
