TL-SG3452

Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video application

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

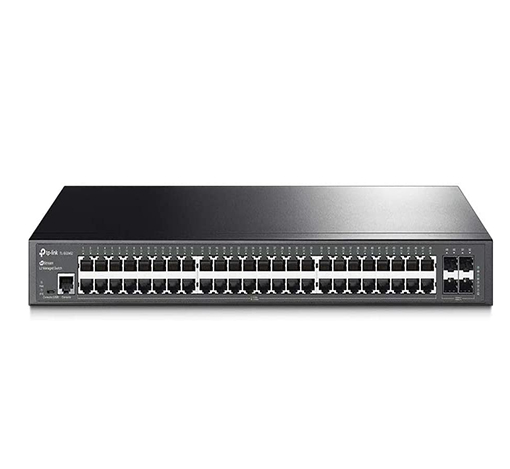

POE Switch 48 Port ยี่ห้อ TP – Link รุ่น TL-SG3452

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ feature Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.

HARDWARE FEATURES
Overview	TP-Link T2600G-52TS (TL-SG3452) JetStream 48-Port Gigabit L2 Managed Switch, 4 SFP Slot รองรับ 802.1Q tag VLAN, Port Mirroring, DHCP Snooping, Static Routing, DHCP Relay, DHCP Server, IGMP Snooping v3, MAC/Protocol-based VLAN รองรับ Omada Controller
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 1000Mbps SFP Slots 1 RJ45 Console Port 1 Micro-USB Console Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
Fan Quantity	Fanless
Power Supply	100~240VAC, 50/60Hz
Power Consumption	Maximum: 33.52W (220V/50Hz)
Dimensions ( W x D x H )	17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)
PERFORMANCE
Bandwidth/Backplane	104Gbps
Packet Forwarding Rate	77.4Mpps
MAC Address Table	16k
Jumbo Frame	9216 Bytes
SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 and L2+ Features	Static Routing?DHCP Relay* IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control L2PT*
VLAN	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based/Private VLAN GARP/GVRP
Access Control List	L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	IP-MAC-Port-VID Binding AAA* 802.1x and Radius Authentication DoS Defend Dynamic ARP inspection (DAI) SSH v1/v2 SSL v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
IPv6	Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6
IPv6 Applications	DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP IPv6 ACL* IPv6 Interface* IPv6 Routing* DHCPv6 Relay* DHCPv6 Snooping*
Management	Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) sFlow* PPPoE Circuit ID* DHCP Relay* DHCP Server* DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 Dual Image CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Password Recovery*
OTHERS
Certification	CE, FCC, RoHS
Package Contents	JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots T2600G-52TS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0~40C (32~104F); Storage Temperature: -40~70C (-40?~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
