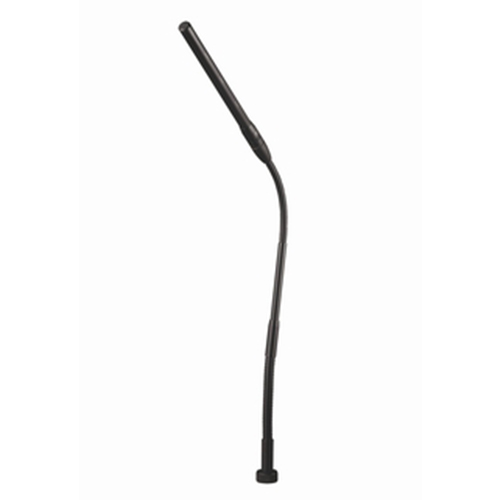

UniLine® Condenser Adapter-Mount Gooseneck Microphone ยี่ห้อ Audio-Technica รุ่น U857AU

Audio–Technica‘s U857AU incorporates the most essential ingredients for quality sound reproduction for a wide range of installed applications. Equipped with Audio-Technica’s UniLine® line-cardioid element with a tightly focused 90º acceptance angle, the U857AU features a small-diameter gooseneck with virtually no ‘memory’. Its ultra-flexible, robust design permits easy adjustment into desired shape while resisting inadvertent repositioning. The 16.81″-long UniLine condenser direct mounts to any 5/8″-27 stand. Featuring UniGuard® innovations that offer unsurpassed immunity from radio frequency interference, the U857AU accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. The battery- or phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.

• Designed for high-quality sound reinforcement, professional recording and broadcasting
• UniLine® polar pattern provides narrow 90º acceptance angle
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no ‘memory’ permits quick positioning into desired shape
• UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
• Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
• Direct mounts to any 5/8″-27 stand, or to included threadedmounting flange
• Operates on battery or phantom power

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line cardioid
• Frequency Response: 30-20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa Battery: -39 dB (11.2 mV) re 1V at 1 Pa
• Impedance: Phantom: 200 ohms Battery: 270 ohms
• Maximum Input Sound Level: Phantom: 130 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: Phantom: 110 dB, 1 kHz at Max SPL Battery: 100 dB, 1 kHz at Max SPL
• Signal to Noise Ratio: 74 dB, 1 kHz at 1 Pa
• Phantom Power Requiremens: 11-52V DC, 2 mA typical
• Battery Type: 1.5V AA/UM3
• Battery Current Life: 0.4 mA / 1200 hours typical (alkaline)
• Switch: Off, on-flat, on-roll-off
• Cable: 9.8′ (3.0 m) long (permanently attached to microphone), 0.13″ (3.2 mm) diameter, 2-conductorshielded cable with TA3F-type connector
• Accessories: AT8531 power module; AT8154 two-stage foam windscreen; AT8663 A-mount flange; AT8664 A-mount cable pass-through adapter; battery
