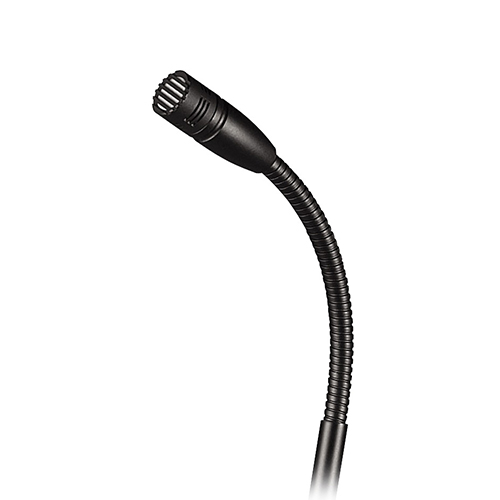

Condenser Quick-Mount Gooseneck Microphone ยี่ห้อ Audio-Technica รุ่น U857Q
Ideal for conference centers, boardrooms, courtrooms, houses of worship, and other installed applications, the U857Q is designed to plug directly into a panel- or desk-mounted XLRF-type connector. Offering unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations, this quick-mount microphone features an ultra-flexible, small-diameter gooseneck and accepts interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and UniLine® (90°) – available separately. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.
Features
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Self-contained electronics eliminate need for external power module
- Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
- Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
- Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
- Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
Specifications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -39 dB (11.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 139 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 115 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Switches | Flat, roll-off |
| Weight | 5.1 oz (144 g) |
| Dimensions | 18.94″ (481.0 mm) long (U857QL), 14.37″ (365.0 mm) long (U857Q) , 0.48″ (12.2 mm) head diameter, 0.74″ (18.9 mm) base diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Optional Interchangeable Elements | UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°) |
| Accessories Included | AT8153 two-stage foam windscreen; AT8662 shock mount |
| Audio-Technica Case Style | M34 |
