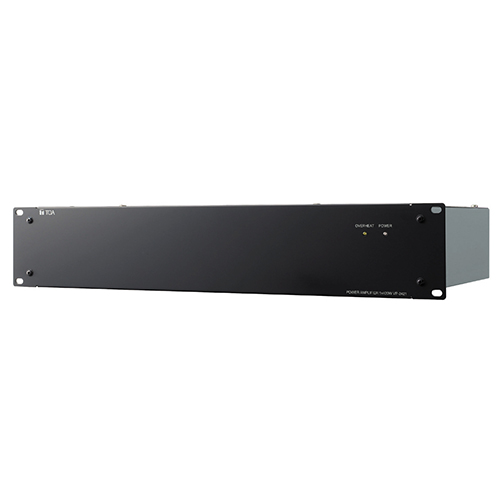

เครื่องขยายเสียง ยี่ห้อ TOA รุ่น VP-2064
| Power Source | 28 V DC (operating range: 20 – 40 V DC) M4 screw terminal, distance between barriers: 12 mm |
|---|---|
| Current Consumption | 0.07 A (standby mode), 0.48 A (no audio input), 4.8 A (1/8 rated output, EN60065), 17 A (rated output) Channel total |
| Rated Output Power | 60 W × 4 (at min. resistive and max. capacitive load) |
| Output Power(at AC Mains: 195.5 V) | 45 W × 4 (at min. resistive and max. capacitive load) |
| Output Voltage | 100 V (70 V, 50 V: selectable by internal wiring change) |
| Minimum Resistive Load | 167 Ω (at 100 V), 83 Ω (at 70 V), 41 Ω (at 50 V) |
| Maximum Capacitive Load | 0.125 μF (at 100 V), 0.25 μF (at 70 V), 0.5 μF (at 50 V) |
| Number of Channels | 4 |
| Input | Specified by input module VP-200VX |
| Number of Module Slots | 4, usable module: VP-200VX |
| Output | Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8 mm |
| Frequency Response | 40 Hz – 16 kHz, ±3 dB (at 1/3 rated output) |
| Distortion | 1 % or less (at rated output, 1 kHz) |
| S/N Ratio | 80 dB or more |
| Panel Indicator | Channel power indicator: 4 channels, dual color LED Overheat indicator: Yellow LED |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Finish | Panel: Surface-treated steel plate, black, 30 % gloss, paint |
| Dimensions | 482 (W) × 88.4 (H) × 340.5 (D) mm |
| Weight | 11.2 kg |
| Accessory | Rack mounting screw…4, Fiber washer…4 |
