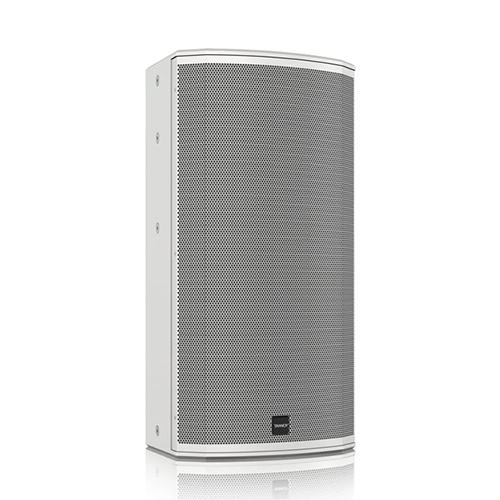

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 12.2Q
12″ PowerDual Full Range Loudspeaker with Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications
Product Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 500 Watts continuous, 2,000 Watts peak power
- 12″ PowerDual full range driver for point source phase coherence
- 12″ low frequency driver for extended bass response
- Q-Centric waveguide for tighter vertical or horizontal pattern control
- Precise 75° H x 40° V dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor and side fill applications
- Configurable for bi-amp operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal and vertical mounting yokes (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
- Designed and engineered in the U.K.
Specification
System
| Frequency response | 70 Hz – 25 kHz ±3 dB 55 Hz – 30 kHz -10 dB |
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 13 |
| Directivity index (DI) | 11.1 |
Power handling (IEC)
| Passive | 500 W continuous, 2,000 W peak |
| Bi-amp | LF: 350 W continuous, 1,400 W peak MF/HF: 350 W continuous, 1,400 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL
| Passive | 126 dB continuous, 132 dB peak |
| Bi-amp | LF: 123 dB continuous, 129 dB peak HF: 127 dB continuous, 133 dB peak |
Impedance
| Passive | 8 Ω |
| Bi-amp | 8 Ω 8 Ω |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 12″ (305 mm) constant directivity PowerDual with Q-Centric waveguide 1 x 12″ (305 mm) LF driver |
Enclosure
| Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D | 781 x 371 x 361 mm (30.7 x 14.6 x 14.2″) |
| Net weight | 30.5 kg (67.2 lbs) |
| Construction | 15 mm (5/8″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount |
| Accessories | Yoke Horizontal VX12.2 Yoke Vertical VX12/VX12.2 Yoke Vertical VX12/VX12.2 – WH VTH Top Hat |
