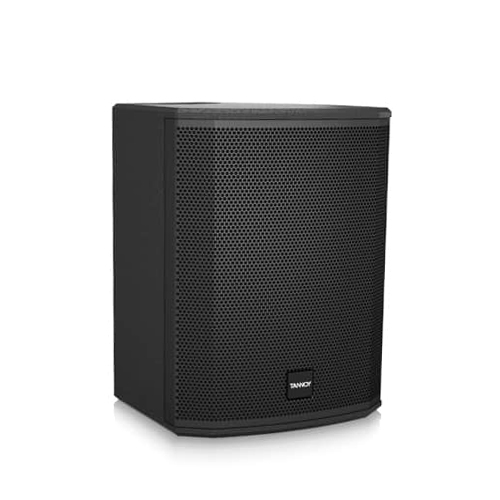

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 8M
8″ Dual Concentric Full Range Loudspeaker for Portable and Installation Applications
Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 130 Watts continuous, 520 Watts peak power
- 8″ Dual Concentric full range driver for point source phase coherence
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor and side fill applications
- Dual 60° and 40° wedge angles for floor monitor use
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- 35 mm pole mount socket for optimum portability
- Optional horizontal mounting yoke (available separately)
- Integrip handle ergonomically integrated into top of cabinet
- Neutrik* speakON NL4 connectors for input and link output
Specification
System
| Frequency response | 85 Hz – 35 kHz ±3 dB62 Hz – 45 kHz -10 dB |
| Nominal dispersion | 90° conical @ -6 dB point |
| Directivity factor (Q) | 6.8 |
| Directivity index (DI) | 9.2 |
| Power handling (IEC) | |
| Passive | 130 W continuous, 520 W peak |
| Bi-amp | – |
| Sensitivity | 92 dB (1 W @ 1 m) |
| Maximum SPL | |
| Passive | 113 dB continuous, 119 dB peak |
| Bi-amp | – |
| Impedance | 8 Ω |
| Passive | – |
| Crossover Type | Passive with dynamic HF protection |
| Components | 1 x 8″ (200 mm) constant directivityDual Concentric |
Enclosure
| Connectors | 2 x Neutrik speakON* NL4 |
| Wiring | |
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | – |
| Dimensions H x W x D | 389 x 281 x 316.7 mm(15.3 x 11.1 x 12.5″) |
| Net weight | 8.6 kg (18.9 lbs) |
| Construction | 15 mm (5/8″) plywood, vented and internally braced |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 3 flying inserts (portrait mounting)1 x Integrip carrying handleIntegral pole mount forstandard 35 mm poles |
