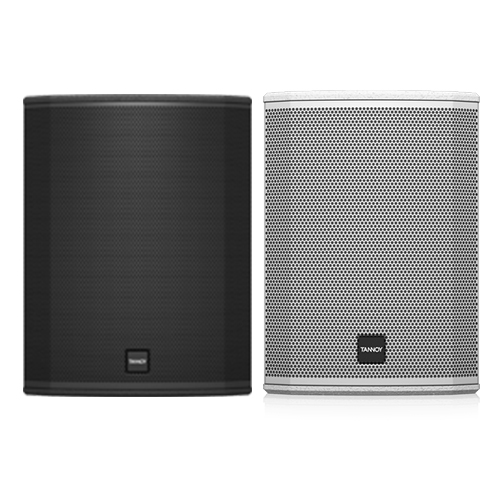

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 15Q
15″ PowerDual Full Range Loudspeaker with Q-Centric Waveguide for Portable and Installation Applications
Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 400 Watts continuous, 1,600 Watts peak power
- 15″ PowerDual full range driver for point source phase coherence
- Q-Centric waveguide for tighter vertical or horizontal pattern control
- Precise 75º H x 40º V dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor and side fill applications
- Configurable for bi-amp operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal and vertical mounting yokes (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet
- Neutrik* speakON NL4 and barrier strip connectors for input and link output
Specification
System
| Frequency response (Full range mode) | 70 Hz – 25 kHz ±3 dB 58 Hz – 30 kHz -10 dB |
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 12 |
| Directivity index (DI) | 10.8 |
| Power handling (IEC) | |
| Passive | 400 W continuous, 1,600 W |
| Bi-amp | LF: 400 W continuous, 1,600 W HF: 80 W continuous, 320 W peak |
| Sensitivity | 99 dB (1 W @ 1 m)) |
| Maximum SPL | |
| Passive | 125 dB continuous, 131 dB peak |
| Bi-amp | LF: 126 dB continuous, 132 dB peak HF: 127 dB continuous, 132 dB peak |
| Impedance | |
| Passive | 8 Ω |
| Bi-amp | 8 Ω 8 Ω |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 15″ (380 mm) constant directivity PowerDual |
Enclosure
| Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
| Wiring | |
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D | 591 x 451 x 421 mm (23.3 x 17.8 x 16.6″) |
| Net weight | 25.4 kg (55.9 lbs) |
| Construction | 18 mm (3/4″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts |
