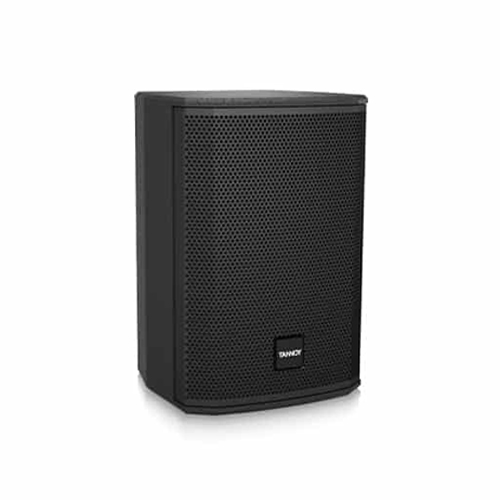

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VXP 6
1600 Watt 6″ Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated Lab Gruppen IDEEA Class-D Amplification
Product Features
- Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
- 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
- 6″ Dual Concentric full range driver for point source phase coherence
- Tightly controlled 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Switchable full range or high pass filter operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- M6 pole mount socket for small-scale portable PA
- Optional horizontal mounting yokes (available separately)
- Fully balanced input and link output on Neutrik* XLR connectors
- Neutrik powerCON* for a secure locking mains power connection
- Designed and engineered in the U.K.
Specification
System
| Frequency response (Full range mode) | 88 Hz – 35 kHz ±3 dB80 Hz – 45 kHz -10 dB |
| Frequency response (Hi-pass mode) | 120 Hz – 35 kHz ±3 dB100 Hz – 45 kHz -10 dB |
| Nominal dispersion | 90° conical @ -6dB point |
| Directivity factor (Q) | 5.6 |
| Directivity index (DI) | 7 |
| Dynamic range | 106 dB |
| Maximum SPL | 123 dB peak |
| Crossover type | Passive 1.6 kHz with dynamic HF protection |
| Transducers | 150 mm (1 x 6″) constant directivity Dual Concentric™ |
Amplifier
| Maximum output power* | 1600 W |
| Type | Class-D |
| Protection | Output current limiter, clip limiter, brownout protection and recovery, thermal |
Connectors
| Input | 1 x XLR, balanced |
| Input impedance | 10 kΩ unbalanced,20 kΩ balanced |
| Maximum input level for clip | +4.5 dBu (hard clip at+14.5 dBu input signal) |
| Link | 1 x XLR |
| Mains Supply | Neutrik powerCON 20A† |
| Controls | |
| Level | Recessed potentiometer |
| Filter | Hi-pass (HPF)/ full range (FR), switchable |
| Power mode | Manual (MAN)/ auto (AUTO), switchable |
Power Supply
| Type | Switch-mode autorange power supply |
| Mains voltage | 100-240 V~, 50/60 Hz |
| Power consumption | 60 W @ 1⁄8 max power |
Enclosure
| Dimensions (HWD) | 334 x 226 x 216 mm (13.1 x 8.9 x 8.5″) |
| Net weight | 7.2 kg (15.9 lbs) |
| Construction | 12 mm (½ “) plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | 2 x M6 yoke bracket inserts Blanking plate for optional VTH pole mount |
