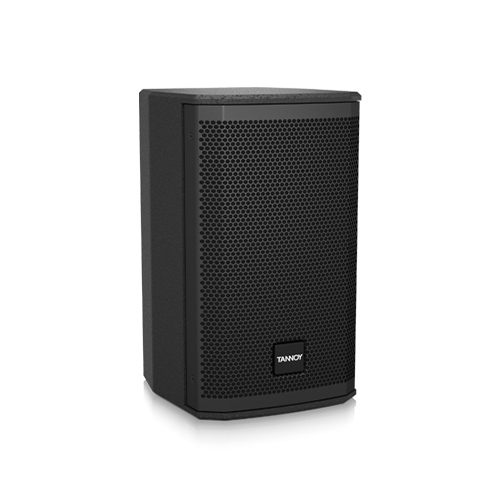

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 5.2
5″ Dual Concentric Full Range Loudspeaker with Low Frequency Driver for Portable and Installation Application
Product Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 130 Watts continuous, 520 Watts peak power
- 5″ Dual Concentric full range driver for point source phase coherence
- 5″ low frequency driver for extended bass response
- Precise 120° H x 90° V dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- M6 pole mount socket for small-scale portable PA
- Optional horizontal mounting yoke (available separately)
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
Specification
System
| Frequency response | 87 Hz – 35 kHz ±3 dB 65 Hz – 45 kHz -10 dB |
| Nominal dispersion | 120° H x 90° V @ -6dB points |
| Directivity factor (Q) | 7.3 |
Power handling (IEC)
| Passive | 130 Watts continuous, 520 W peak |
| Bi-amp | — |
| Sensitivity | 90 dB (1 W @ 1 m) |
Maximum SPL
| Passive | 111 dB continuous, 117 dB peak |
| Bi-amp | — |
Impedance
| Passive | 8 Ω |
| Bi-amp | — |
| Crossover Type | Passive with dynamic HF protection |
| Components | 1 x 5″ (125 mm) LF driver 1 x 5″ (125 mm) constant directivity Dual Concentric |
Enclosure
| Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | — |
| Dimensions H x W x D | 334 x 181 x 201 mm (13.1 x 7.1 x 7.9”) |
| Net weight | 4.4 kg (9.7lbs) |
| Construction | 12 mm (1/2”) plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M6 x 2 yoke bracket insert (4 mm allen key)M6 x 4 insertsCompatible with industry standard brackets |
