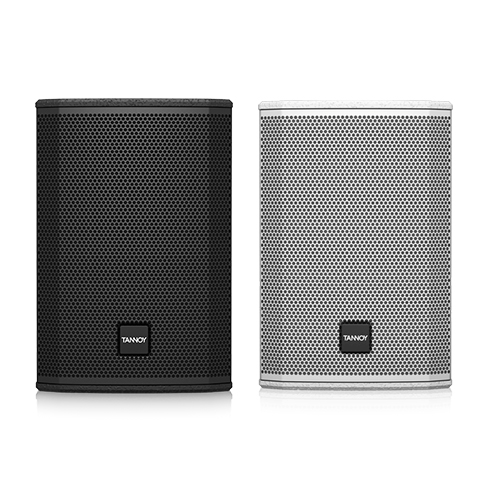

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 6
6″ Dual Concentric Full Range Loudspeaker for Portable and Installation Applications
Product Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 100 Watts continuous, 400 Watts peak power
- 6″ Dual Concentric full range driver for point source phase coherence
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
Specification
System
| Frequency response (Full range mode) | 92 Hz – 35 kHz ±3 dB 80 Hz – 45 kHz -10 dB |
| Nominal dispersion | 90° conical @ -6 dB point |
| Directivity factor (Q) | 5.6 |
| Directivity index (DI) | 7 |
| Power handling (IEC) | |
| Passive | 100 W continuous, 400 W |
| Bi-amp | – |
| Sensitivity | 91 dB (1 W @ 1 m)) |
| Maximum SPL | |
| Passive | 111 dB continuous, 117 dB peak |
| Bi-amp | – |
| Impedance | |
| Passive | 8 Ω |
| Bi-amp | – |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 6″ (150 mm) constant directivity PowerDual |
Enclosure
| Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
| Wiring | |
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | – |
| Dimensions H x W x D | 334 x 226 x 216 mm (13.1 x 8.9 x 8.5″) |
| Net weight | 5.0 kg (11.0 lbs) |
| Construction | 12 mm (1/2″) plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M6 x 2 yoke bracket insert (4 mm allen key) M6 x 4 inserts Compatible with industry standard brackets Blanking plate for optional VTH pole mount |
