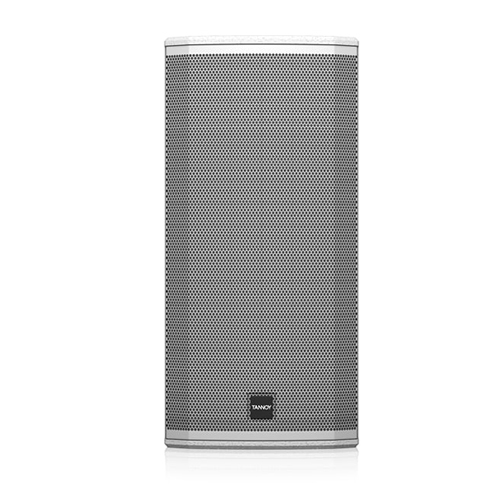

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น VX 8.2
8″ Dual Concentric Full Range Loudspeaker with Low Frequency Driver for Portable and Installation Applications
Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 200 Watts continuous, 800 Watts peak power
- 8″ Dual Concentric full range driver for point source phase coherence
- 8″ low frequency driver for extended bass response
- Precise 90? dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor and side fill applications
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet
- Neutrik* speakON NL4 and barrier strip connectors for input and link output
Specification
System
| Frequency response | 80 Hz – 35 kHz ±3 dB60 Hz – 45 kHz -10 dB |
| Nominal dispersion | 90° conical @ -6 dB point |
| Directivity factor (Q) | 8.1 |
| Directivity index (DI) | 9.2 |
| Power handling (IEC) | |
| Passive | 200 W continuous, 800 W peak |
| Bi-amp | – |
| Sensitivity | 93 dB (1 W @ 1 m) |
| Maximum SPL | |
| Passive | 116 dB continuous, 122 dB peak |
| Bi-amp | – |
| Impedance | |
| Passive | 8 Ω |
| Bi-amp | – |
| Crossover Type | Passive with dynamic HF protection |
| Components | 1 x 8″ (200 mm) LF driver1 x 8″ (200 mm) constant directivityDual Concentric |
Enclosure
| Connectors | 2x Neutrik speakON* NL41 x barrier strip terminals |
| Wiring | |
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | – |
| Dimensions H x W x D | 591 x 281 x 276 mm(23.3 x 11.1 x 10.9″) |
| Net weight | 14.8 kg (32.6 lbs) |
| Construction | 15 mm (5/8″) plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 4 flying insertsM10 x 2 yoke bracket inserts2 x Integrip carrying handleBlanking plate for optional VTH pole mount |
