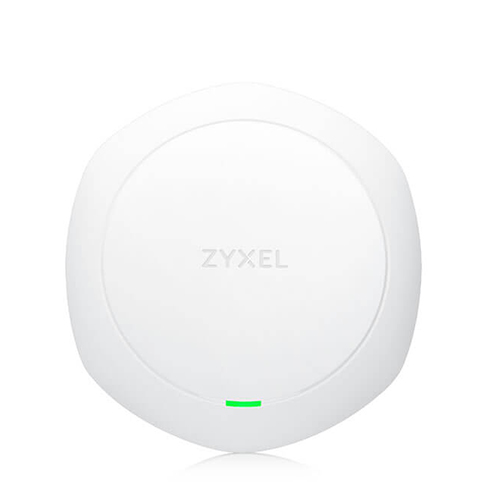

802.11ac Wave 2 Dual-Radio Unified Pro Access Point ยี่ห้อ ZYXEL รุ่น WAC6303D-S

The WAC6303D-S has been designed with Smart Antenna technology, to provide clients with the ultimate wireless experience, especially in high-density environment.

Additionally the WAC6303D-S supports NebulaFlex^TM Pro which includes one year of Professional pack and triple mode functionality (standalone, hardware controller and Nebula).

Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3×3 AP.

Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.

WAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.

The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.

To provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.

The WAC6303D-S series featuring NebulaFlex Pro can be run by standalone, controller or Nebula Control Center to meet whatever your business need. For a straightforward network it can run in standalone mode, and for a complex one needed advanced features it can run with on-premises controller. And Nebula is designed to satisfy all situation with great scalability, feature-rich, and central management.

Specifications

Models	WAC6303D-S 802.11ac Wave 2 Dual-Radio Unified Pro Access Point
RF Specifications
802.11n/ac premium features	2.4GHz: 2×2 MIMO with two spatial stream (SU-MIMO) 5GHz: 3×3 MIMO with three spatial stream (SU-, or MU-MIMO) 802.11ac beamforming (transmit beamforming) Maximal ratio combining (MRC) Low End Sensitivity Improvements (LESI) Time Domain Channel Smoothing 20-, 40- and 80-MHz channels PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Typical transmit output power (dBm) *1	US (FCC) 2.4 GHz: 25 dBm US (FCC) 5 G GHz: 28 dBm EU (ETSI) 2.4 GHz: 20 dBm EU (ETSI) 5 G GHz: 26 dBm
Antenna gain	2.4 GHz: 3 dBi; 2×2 MIMO 5 GHz: 4 dBi 3×3 MIMO
Support data rate	802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns) 802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns)
Receive sensitivity	Min. Rx sensitivity up to -103 dBm
Interfaces
Number of 10/100/1000M LAN	2 x switch ports
Console port	4-Pin serial
Input power requirements	Direct DC power or Power over Ethernet (PoE)*2
PoE	802.3at (full mode) 802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)
PoE power draw	16.2W (802.3at PoE)
WLAN
WLAN maximum throughput	Up to 1600 Mbps
Fast roaming	Pre-authentication and PMK caching
Wireless Security	WPA/WPA2-PSK WPA/WPA2-Enterprise WLAN access control list EAP type IEEE 802.1X MAC filtering Web authentication *3 Layer-2 isolation RADIUS authentication Microsoft AD authentication*3 LDAP authentication *3 MAC authentication *3 Rogue AP detection
Number of SSID	16
QoS	WMM WMM power save U-APSD DiffServ marking
Network
IPv6 support	Yes
VLANs	Yes
DHCP client	Yes
Management
ZON Utility*4	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect	Neighbor device discovery One-click remote management access to the neighboring Zyxel devices
Zyxel AP Configurator*5	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer *6	Wi-Fi AP planning Wi-Fi coverage detection Wireless health management
Standalone AP mode	Yes
Managed AP mode	Yes
CLI	Yes
SNMP	v2c/v3
Standard Compliance
Ethernet	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3af/at
PoE	IEEE 802.3af/at
WLAN	802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55024 EN61000-3-2/-3 BSMI CNS13438
Safety	EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Physical Specifications and others
Item	Dimensions (WxDxH)(mm/in.) 211 x 223 x 39 / 8.31 x 8.78 x 1.54 Weight (kg/lb.) 800/1.76
Packing	Dimensions (WxDxH)(mm/in.) 251 x 247 x 55 / 9.88 x 9.72 x 2.17 Weight (kg/lb.) 1040/ 2.29
Included accessories	Wall/ceiling mount plate
Plenum rating	Yes
Kensington lock support	Yes
Power supply	Input: AC 100-240V, 50~60Hz Output: DC +12V 2A (Sold separately)
MTBF (hr)	3,960,217
Environmental Specifications
Operating	Temperature -20°C to 60°C / -4°F to 140°F Humidity 10% to 90% (Non-condensing)
Storage	Temperature -40°C to 70°C / -40°F to 158°F Humidity 10% to 90%
