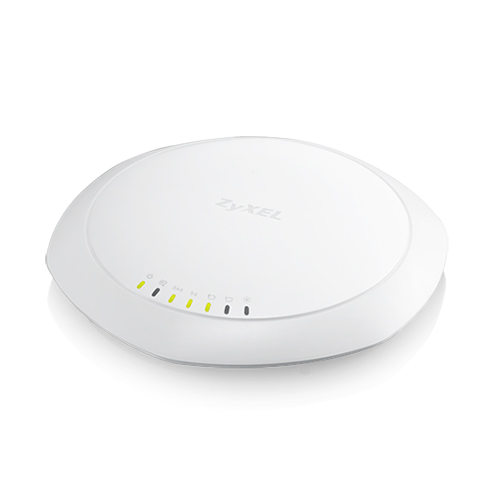

802.11ac Dual Radio Dual-optimized Antenna 3×3 Access Point ยี่ห้อ ZYXEL รุ่น WAC6103D-I

Cloud management is a simpler, faster and much more efficient way to handle larger networks. However Zyxel knows that it’s not always easy for administrators of busy venues to go for cloud immediately. In response to this challenge, the Zyxel WAC6103D-I featuring NebulaFlex Pro offers the full flexibility for users to switch among standalone, controller-managed and cloud-managed modes. In addition, it comes with a 1-year bundled Nebula Professional pack license* that eliminates immediate licensing cost when migrating to full-featured cloud management.

Most access points on the market are designed with single static radiation pattern and it’s typically only support ceiling-mount installation. However, in the real world ceiling-mount deployment is not always feasible for locations such as high ceiling warehouses, fancy ceiling lobbies or atriums. An AP with ceiling-mount pattern installed as wall-mount cannot achieve its best signal coverage and could cause interference. It’s no doubt that a WiFi AP with installation flexibility, optimal performance and stylish exterior is a necessity today

Zyxel’s WAC6103D-I is a high performance 3-stream 802.11ac WiFi AP featuring ultra-fast speeds of up to 1.75 Gbps with groundbreaking “Dualoptimized” antenna design. With the innovative adjustable antenna, the WAC6103D-I provides two optimized signal coverage types for either ceiling-mount or wall-mount deployments. Even better, the stylish, ultraslim industrial design perfectly blends into modern decorations. Choose WAC6103D-I for constant, no-compromise WiFi performance.

Specifications

Models	WAC6103D-I
Description
Product name	802.11ac Dual Radio Dual-optimized Antenna 3×3 Access Point
Main Design
Wireless frequency	2.4 and 5 GHz
Radio	2
RF Specifications
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz Taiwan (TW): 2.412 to 2.462 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Taiwan (TW): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
802.11n/ac premium features	3×3 Multiple-Input Multiple-Output (MIMO) with three spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Conducted typical transmit output power (dBm)	FCC 11b/g : 28 FCC 11g/n : 28 FCC 11a : 28 FCC 11n/a (ac) : 28 EU 11b/g : 20 EU 11g/n : 20 EU 11a : 21 EU 11n/a (ac) : 26
Antenna system	Dual-optimized internal antenna
Antenna gain	Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBii
Support data rate	802.11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11b: 1, 2, 5.5 and 11 Mbps 802.11n: up to 450 Mbps in MCS23 (40 MHz) 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
Receive sensitivity	Min. Rx sensitivity to -102 dBm
Interfaces
Number of 10/100/1000M LAN	2 x switch ports
Console port	4-Pin serial
PoE	Yes
PoE power draw	12.48 W (802.3at PoE)*1
WLAN Features
WLAN maximum throughput	Up to 900 Mbps
Mesh AP (By License)*2	Yes
Mesh AP for multiple SSID with VLAN*2	Yes
Fast roaming	Pre-authentication, PMK caching and 802.11r/k/v
Wireless Security
WEP	Yes
WPA/WPA2-PSK	Yes
WPA/WPA2-Enterprise	Yes
WMM(WiFi certified)	Yes
WLAN access control list	Yes
EAP types	EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X	Yes
Number of SSID	16
Web authentication*2	Yes
MAC filtering	Yes
Layer-2 isolation	Yes
RADIUS authentication	Yes
Microsoft AD authentication*2	Yes
LDAP authentication*2	Yes
MAC authentication*2	Yes
Rogue AP detection	Yes
Rogue AP containment	Yes
Network
IPv6 host	Yes
VLANs	Yes
DHCP client	Yes
QoS
WMM	Yes
WMM power save	Yes
DiffServ marking	Yes
Management
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration Device reboot Device reboot Firmware upgrade IP renew Device locating Device factory reset Device reboot Web GUI access One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect	Neighbor device discovery One-click remote management access to the neighboring Zyxel devices
Zyxel AP Configurator	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer	WiFi AP planning WiFi coverage detection Wireless health management
Standalone AP mode	Yes
Managed AP mode	Yes
CLI	Yes
Web UI	Yes
SNMP	v2c/v3
Others
Plenum rating	Yes
WPA/WPA2-PSK	Yes
Input power	802.3at PoE only (No DC jack)
MTBF (hr)	1,005,235
Standard Compliance
Ethernet	Yes
WPA/WPA2-PSK	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at
PoE	IEEE 802.3at
WLAN	802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio	FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC	FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety	EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37 Weight (g/lb.) 445/0.98
Packing	Dimensions (WxDxH)(mm/in.) 235 x 246 x 60/9.25 x 9.69 x 2.36 Weight (g/lb.) 938/2.07
Included accessories	Wall/ceiling mount plate
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing)
