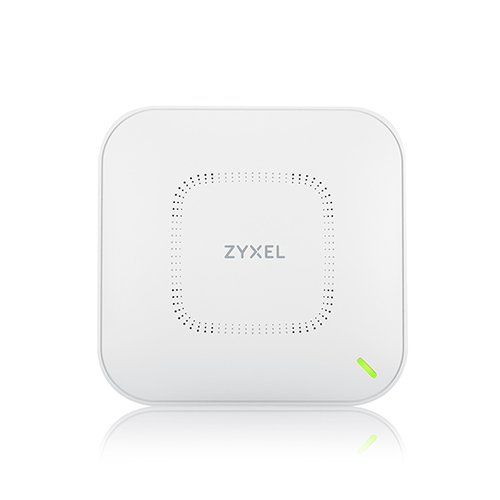

802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point ยี่ห้อ ZYXEL รุ่น WAX650S
The Zyxel WAX650S supports maximum data rate of 3550 Mbps (2400 Mbps in 5 Ghz and 1150 Mbps in 2.4 Ghz), boosted by Zyxel smart antenna technology, a proven technology that can mitigate co-channel interferences. The new WiFi 6 AP delivers faster and more consistent connections for every user – even in higher density environments, which means more users and devices can be connected without any degradation in performance or response time.
Schools and colleges, hotels and guest houses, stations and airports, cafes and bars, or any other organizations that need to accommodate a large number of devices can offer better services for everyone, every time they connect to WiFi.
The WAX650S with NebulaFlex Pro offers the full flexibility for users to switch among standalone, controller-managed and cloud-managed modes. In addition, it comes with a 1-year bundled Nebula Professional Pack license*1 that eliminates immediate licensing cost when migrating to full-featured cloud management.
Specifications
|
Models
|
 WAX650S
|
|---|---|
| Product name | |
| Description | 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point |
| Wireless | |
| Standard | IEEE802.11 ax/ac/n/g/b/a |
| MIMO | MU-MIMO |
| Wireless speed | 2.4GHz: 1150Mbps 5GHz: 2400Mbps |
| Frequency band | 2.4 GHz (IEEE 802.11 b/g/n)
5 GHz (IEEE 802.11 a/n/ac)
|
| Bandwidth | 20-, 40- ,80- and 160-MHz |
| Conducted typical transmit output power | US (2.4GHz/5GHz): 28/28dBm EU (2.4GHz/5GHz): 19/26dBm |
| RF Design | |
| Antenna type | 4×4 Smart Antenna |
| Antenna gain | 2.4GHz: Peak Gain 3dBi 5GHz: Peak Gain 5.8dBi |
| Minimum Receive sensitivity | -105 dBm |
| WLAN feature | |
| Band Steering | Yes |
| WDS | Yes (V6.10) |
| Mesh AP (By License) | Yes (V6.10) |
| Mesh AP for multiple SSID with VLAN | Yes (V6.10) |
| Smart mesh | Yes (V6.10) |
| Fast roaming | Pre-authentication, PMK caching and 802.11k/v/r |
| DCS (Auto Channel) | Yes |
| Load balancing | Yes |
| Security | |
| Wireless Security |
|
| Access management |
|
| Networking | |
| IPv6 | Yes |
| VLANs | Yes |
| WMM | Yes |
| U-APSD | Yes |
| DiffServ marking | Yes |
| Management | |
| Operating mode |
|
| ZON Utility |
|
| Zyxel AP Configurator |
|
| Zyxel Wireless Optimizer |
|
| Web UI/ CLI | Yes |
| SNMP | Yes |
| Physical Specifications and others | |
| Item | Dimensions (WxDxH)(mm/in.) 230 x 235 x 53.5/9.06 x 9.25 x 2.11 Weight (g/lb.) 1160/2.56 |
| Packing | Dimensions (WxDxH)(mm/in.) 282 x 266 x 79/11.1 x 10.47 x 3.11 Weight (g/lb.) 1490/3.38 |
| Included accessories |
|
| MTBF (hr) | 180,653 |
| Physical Interfaces | |
| Ethernet port |
|
| Power |
|
| Environmental Specifications | |
| Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing) |
| Storage | Temperature -30°C to 70°C/-22°F to 158°F Humidity 10% to 90% (non-condensing) |
| Certifications | |
| Radio |
|
| EMC |
|
| Safety |
|
