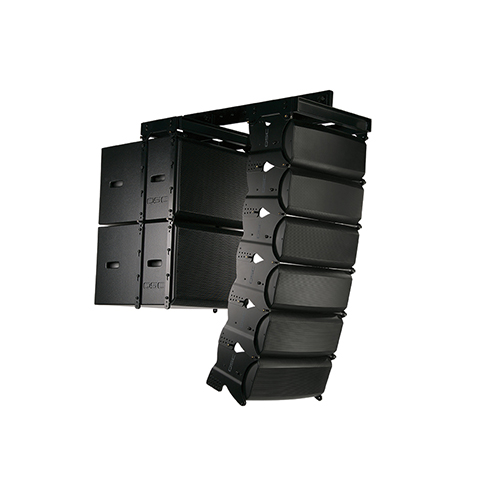

ตู้ลำโพง ยี่ห้อ QSC รุ่น WL2082-i
Installation Line Array System
Features
- Installation-optimized design brings affordable and uncompromised line array performance to a broader range of venues
- Compact and attractive appearance, available in black and white, harmonizes with any installation environment
- Wide 140° horizontal coverage
- Economical and easy-to-install suspension system with ample array adjustability
| SPECIFICATIONS | WL2082-i | |||||||||||||||
| Configuration | 2½ way, biamp or triamp | |||||||||||||||
| Transducers High FrequencyLow Frequency |
Dual 50 W 8Ω 1-inch exit, 1.75-inch titanium diaphragm, neodymium magnet assembly Dual 200 W 16Ω 8-inch woofers, 2-inch voice coils, neodymium magnet assemblies, weather resistant cone |
|||||||||||||||
| Frequency Response (±3 dB) | 80 Hz – 20 kHz | |||||||||||||||
| Frequency Range (-10 dB) | 68 Hz – 22 kHz | |||||||||||||||
| Nominal Impedance | HF: 16Ω LF biamp mode: 8Ω LF triamp mode: 16Ω (×2) |
|||||||||||||||
| Sensitivity | HF: 106 dB LF: 97 dB (4 V @ 1 m) |
|||||||||||||||
| Continuous Power Capacity 1 | HF: 100 W LF biamp mode: 400 W LF triamp mode: 200 W (×2) |
|||||||||||||||
| Recommended Power | HF: 200 W LF biamp mode: 800 W LF triamp mode: 400 W (×2) |
|||||||||||||||
| Maximum Output (dB SPL at 1 m) Continuous / Peak |
HF: 126 dB / 132 dB LF: 122 dB / 128 dB |
|||||||||||||||
| Nominal Coverage | Horizontal 140 degrees Vertical: dependent on number of elements used |
|||||||||||||||
| Cabinet Type | Ported, elliptical / trapezoidal | |||||||||||||||
| Enclosure Material | HIPS (high impact polystyrene) with UV protectant | |||||||||||||||
| Finish | Available in black (WL2082-i BLK) or white (WL2082-i WHT) paintable | |||||||||||||||
| Grille | Perforated, formed aluminum | |||||||||||||||
| Connectors | 2 x NL-8 in parallel | |||||||||||||||
| Pin Outs |
|
|||||||||||||||
| Attachment Points | Integral, side plate adjustable rigging system, vertical splay adjustable in 1° increments from 0° – 10° | |||||||||||||||
| Dimensions (HWD) inches | 11.8 x 27 x 13.4 | |||||||||||||||
| Dimensions (HWD) mm | 300 x 686 x 340 | |||||||||||||||
| Weight | 37 lb / 16.8 kg net 45 lb / 20.45 kg shipping |
|||||||||||||||
| Accessories Available | FB2082-i: Fly-bar for WL2082-i, WL118-sw and WL115-sw. Available in black or white.
EB2082-i: Extension bar, allows WL118-sw or WL115-sw to be suspended behind WL2082-i. Available in black or white. PB2082-i: Pullback bar for WL2082-i. Pulls the bottom of the array back to achieve the desired angle. Available in black or white. AB2082-i: Angle bracket, allows greater vertical splay between WL2082-i and WL118-sw or WL115-sw enclosures in ground stacked configurations. Available in black. Requires two brackets per array, sold individually. QRP-KIT-1: Kit of four quick-release pins for use in lieu of included bolts. |
