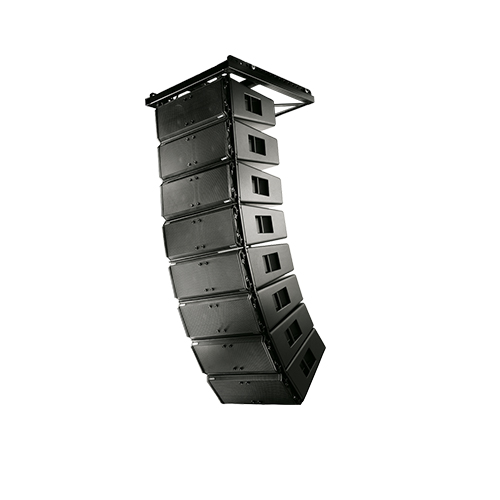

ตู้ลำโพง ยี่ห้อ QSC รุ่น WL2102-w
Passive Dual 10-inch 3-way
Features
- Patented multiple aperture diffraction slot waveguide provides exceptionally wide horizontal coverage (140°) and a near ideal vertical line source.
- Exceptionally high output capability in a very compact form factor.
- May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-SYS, SC-28, PLD amplifiers and CXD amplifiers.
- Dual 10-inch long-excursion, high-power, low-frequency transducers.
- Single 3-inch diaphragm neodymium compression driver.
- Birch ply enclosures. Available with standard finish in black.
- Fully captive hardware design incorporates all components necessary for box to box rigging.
| SPECIFICATIONS | WL2102-w | |||||||||||||||
| Configuration | Biamp or Triamp mode | |||||||||||||||
| Transducers High Frequency Low Frequency |
1.4-inch exit, 3-inch titanium diaphragm, neodymium magnet assembly 2 × 400 W, 16 ohm 10-inch woofer, 3-inch voice coil, ceramic magnet assembly |
|||||||||||||||
| Frequency Response (±3 dB) Frequency Response (-10 dB) |
55 Hz to 18 kHz (with recommended DSP processing) 48 Hz to 20 kHz (with recommended DSP processing) |
|||||||||||||||
| Nominal Impedance | HF: 16 ohms LF biamp mode: 8 ohms LF triamp mode: 16 ohms (× 2) |
|||||||||||||||
| Continuous Power Capacity | HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz) LF biamp mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz) LF triamp mode: 400 W (×2) (2 hours, AES1984-2 method, 80 to 800 Hz) |
|||||||||||||||
| Max Recommended Power | HF: 300 W @ 16Ω LF bi-amp mode: 1400 W @ 8Ω LF tri-amp mode: 700 W @ 16Ω (x 2) |
|||||||||||||||
| Sensitivity (1 W at 1 m) | HF: 107.5 dB (single cabinet measured in free space.) LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel) |
|||||||||||||||
| Maximum Output (SPL at 1 m) Continuous: Peak: |
HF: 127 dB / LF: 127 dB HF: 133 dB / LF: 133 dB |
|||||||||||||||
| Maximum Output (dB SPL at 1 m) Continuous / Peak |
HF: 126 dB / 132 dB LF: 122 dB / 128 dB |
|||||||||||||||
| Nominal Coverage | Horizontal: 140° Vertical: Dependent on number of elements used |
|||||||||||||||
| Enclosure | ||||||||||||||||
| Cabinet Type | Ported, trapezoidal | |||||||||||||||
| Material | Baltic birch plywood | |||||||||||||||
| Finish | Available in standard black finish | |||||||||||||||
| Grille | Perforated, formed powder coated steel | |||||||||||||||
| Connectors | 2 × Neutrik Speakon® NL8 in parallel | |||||||||||||||
| Pinout |
|
|||||||||||||||
| Attachment Points | Integral, adjustable rigging system, vertical splay adjustable in 1° increments from 2 ° to 10° and 0° | |||||||||||||||
| Dimensions (H×W×D) | 273 × 698.5 × 514.3 mm 10.75 × 27.5 × 20.25 in |
|||||||||||||||
| Carton Dimensions (H×W×D) | 280 × 711 × 533 mm 11 × 28 × 21 in |
|||||||||||||||
| Net Weight | 37.7 kg / 83 lb | |||||||||||||||
| Shipping Weight | 42.6 kg / 93.9 lb | |||||||||||||||
| Accessories Available | AF2102-LA | |||||||||||||||
