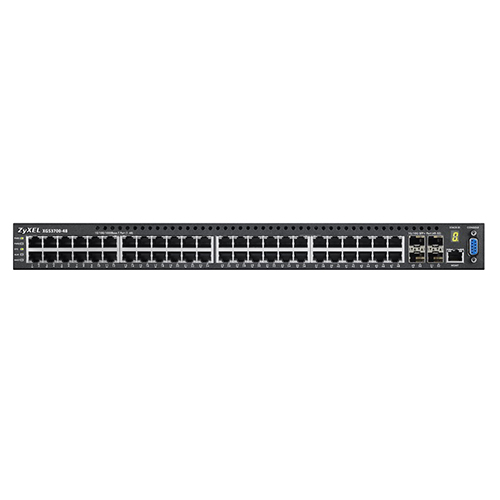

48-port GbE L3 Switch with 10GbE Uplink ยี่ห้อ ZYXEL รุ่น XGS3700-48
The Zyxel XGS3700 Series are Layer 3 Gigabit managed switches with 10G uplink perfect for data center access, SMB core/aggregation, and mission critical PoE applications. There are 4 models for the XGS3700 Series including 24/48-port and PoE or non-PoE options; All of them come with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots. The Series is designed with an advanced feature set with static routing, policy-based routing (PBR), VRRP and ECMP support. The high redundancy hardware architecture includes hot swappable and internal redundant power supply. The PoE models also comply with the IEEE 802.3at PoE Plus standard and provide industry-leading PoE power budget of up to 1000 watts.
|
Models
|
XGS3700-24
|
XGS3700-24HP
|
XGS3700-48
|
XGS3700-48HP
|
|---|---|---|---|---|
| Models | ||||
| Product name | 24-port GbE L3 Access Switch with 10GbE Uplink | 24-port GbE L3 Access PoE Switch with 10GbE Uplink | 48-port GbE L3 Access Switch with 10GbE Uplink | 48-port GbE L3 Access PoE Switch with 10GbE Uplink |
| Switch class | Layer 3 Lite | Layer 3 Lite | Layer 3 Lite | Layer 3 Lite |
| Port Density | ||||
| Total port count | 28 | 28 | 52 | 52 |
| 100/1000 Mbps | 24 | 24 | 48 | 48 |
| 10-Gigabit SFP+ | 4 | 4 | 4 | 4 |
| PoE | ||||
| 802.3at PoE ports | – | 24 | – | 48 |
| Total PoE budget (Watts) | – | Single PSU: 460 W Dual PSU: 1,000 W |
– | Single PSU: 460 W Dual PSU: 1,000 W |
| Performance | ||||
| Switching capacity (Gbps) | 128 | 128 | 176 | 176 |
| Forwarding rate (Mpps) | 95 | 95 | 131 | 131 |
| Packet buffer (byte) | 2 M | 2 M | 2 M | 2 M |
| MAC address table | 16 K | 16 K | 16 K | 16 K |
| L3 forwarding table | Max. 1 K IPv4 entries; Max. 512 IPv6 entries | |||
| Routing table | 64 | 64 | 64 | 64 |
| IP interface | 128 | 128 | 128 | 128 |
| Flash/RAM | 32MB/512MB | 32MB/512MB | 32MB/512MB | 32MB/512MB |
| Power | ||||
| Input | 100 – 240 V AC, 50/60 Hz | |||
| Max. power consumption (watt) | Single PSU: 57.8 W Dual PSU: 70.3 W |
Single PSU: 534.3 W Dual PSU: 1,098.5 W |
Single PSU: 74.7 W Dual PSU: 87.6 W |
Single PSU: 556.7 W Dual PSU: 1,121.3 W |
| Physical Specifications | ||||
| Dimensions (WxDxH)(mm/in.) | 440 x 437 x 40/17.32 x 17.2 x 1.57 | |||
| Weight (kg/lb.) | 7.27/16.03 | 7.55/16.64 | 7.57/16.69 | 8.02/17.68 |
| Included accessories |
|
|||
| Environmental Specifications | ||||
| Operating | Temperature: 0°C to 50°C/32°F to 122°F Humidity: 10% to 95% (non-condensing) |
|||
| Storage | Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 10% to 90% (non-condensing) |
|||
| MTBF (hr) | 280,000 | 220,000 | 250,000 | 200,000 |
| Heat dissipation (BTU/hr) | Single PSU: 197.1 Dual PSU: 239.7 |
Single PSU: 1,821 Dual PSU: 3,745.9 |
Single PSU: 254.7 Dual PSU: 298.7 |
Single PSU: 1,898.3 Dual PSU: 3,823.6 |
| Acoustic noise (dBA) | 53.3 | 53.3 | 53.6 | 53.6 |
