XGS3700-48HP

48 x GbE PoE RJ-45 ports
4 x 10G SFP+ ports
PoE power budget: 460W (Single PSU) / 1000W (Dual PSU)

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

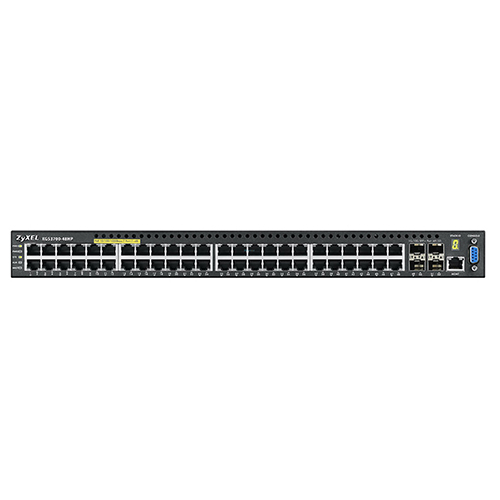

48-port GbE L3 Access PoE Switch with 10GbE Uplink ยี่ห้อ ZYXEL รุ่น XGS3700-48HP

The Zyxel XGS3700 Series are Layer 3 Gigabit managed switches with 10G uplink perfect for data center access, SMB core/aggregation, and mission critical PoE applications. There are 4 models for the XGS3700 Series including 24/48-port and PoE or non-PoE options; All of them come with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots. The Series is designed with an advanced feature set with static routing, policy-based routing (PBR), VRRP and ECMP support. The high redundancy hardware architecture includes hot swappable and internal redundant power supply. The PoE models also comply with the IEEE 802.3at PoE Plus standard and provide industry-leading PoE power budget of up to 1000 watts.

Models	XGS3700-24	XGS3700-24HP	XGS3700-48	XGS3700-48HP
Models
Product name	24-port GbE L3 Access Switch with 10GbE Uplink	24-port GbE L3 Access PoE Switch with 10GbE Uplink	48-port GbE L3 Access Switch with 10GbE Uplink	48-port GbE L3 Access PoE Switch with 10GbE Uplink
Switch class	Layer 3 Lite	Layer 3 Lite	Layer 3 Lite	Layer 3 Lite
Port Density
Total port count	28	28	52	52
100/1000 Mbps	24	24	48	48
10-Gigabit SFP+	4	4	4	4
PoE
802.3at PoE ports	–	24	–	48
Total PoE budget (Watts)	–	Single PSU: 460 W Dual PSU: 1,000 W	–	Single PSU: 460 W Dual PSU: 1,000 W
Performance
Switching capacity (Gbps)	128	128	176	176
Forwarding rate (Mpps)	95	95	131	131
Packet buffer (byte)	2 M	2 M	2 M	2 M
MAC address table	16 K	16 K	16 K	16 K
L3 forwarding table	Max. 1 K IPv4 entries; Max. 512 IPv6 entries
Routing table	64	64	64	64
IP interface	128	128	128	128
Flash/RAM	32MB/512MB	32MB/512MB	32MB/512MB	32MB/512MB
Power
Input	100 – 240 V AC, 50/60 Hz
Max. power consumption (watt)	Single PSU: 57.8 W Dual PSU: 70.3 W	Single PSU: 534.3 W Dual PSU: 1,098.5 W	Single PSU: 74.7 W Dual PSU: 87.6 W	Single PSU: 556.7 W Dual PSU: 1,121.3 W
Physical Specifications
Dimensions (WxDxH)(mm/in.)	440 x 437 x 40/17.32 x 17.2 x 1.57
Weight (kg/lb.)	7.27/16.03	7.55/16.64	7.57/16.69	8.02/17.68
Included accessories	Power cord Rack mounting kit
Environmental Specifications
Operating	Temperature: 0°C to 50°C/32°F to 122°F Humidity: 10% to 95% (non-condensing)
Storage	Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 10% to 90% (non-condensing)
MTBF (hr)	280,000	220,000	250,000	200,000
Heat dissipation (BTU/hr)	Single PSU: 197.1 Dual PSU: 239.7	Single PSU: 1,821 Dual PSU: 3,745.9	Single PSU: 254.7 Dual PSU: 298.7	Single PSU: 1,898.3 Dual PSU: 3,823.6
Acoustic noise (dBA)	53.3	53.3	53.6	53.6
