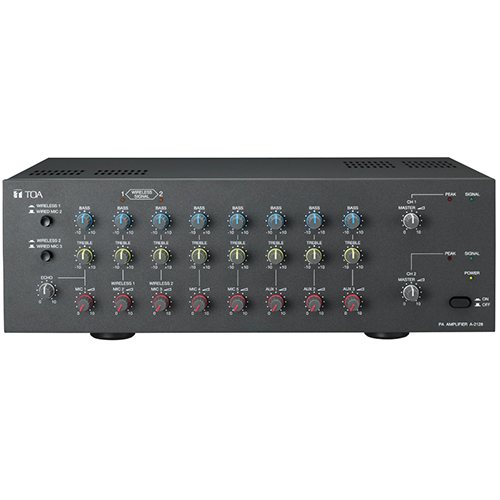

Power Mixer ยี่ห้อ TOA รุ่น A-2128 AS
| Power Source | 220V AC, 50/60 Hz or 14V DC |
|---|---|
| Rated Output Power | 2 × 120W |
| Power consumption | 520W (operated with AC at rated output) 286W (operated with AC at EN60065 standard) 20A (operated with DC at rated output) |
| Frequency Response | 50 – 20,000 Hz, ± 3dB |
| Distortion | Less than 1% at 1kHz, 1/3 rated power |
| Input | MIC1: -60dB*, 600 Ω, Balanced, Phone Jack, Echo MIC 2-3: -60dB*, 600 Ω, Balanced, Phone Jack, Wireless Tuner 1-2 MIC 4-5: -60dB*, 600 Ω, Balanced, Phone Jack AUX 1-3: -10 dB*, 10Ω, Unbalanced, RCA Pin Jack PWR AMP IN: 2 x 0 dB*, 10kΩ, Unbalanced, RCA Pin Jack |
| Output | Speaker Outputs: Floating Balanced High Impedance (100V): 2 x 83 Ω Low Impedance (4 Ω) : 2 x 22V REC OUT: 0dB* (1V), 600 Ω, Unbalanced, RCA Pin Jack PRE AMP OUT: 2 x 0 dB*, 600 Ω, Unbalanced, RCA Pin Jack |
| Phantom Power | ON or OFF for MIC 1 with switch setting ( +21V DC) |
| S/N Ratio | More than 80 dB All Minimum Volume Control More than 50 dB All Maximum Volume Control |
| Tone Control | Bass± : 10dB at 100 Hz Treble± : 10dB at 10 Hz |
| Indicator | Power, Signal, Peak Signal, Wireless Mic Signal |
| Finish | Case: Steel Plate, Grey / Panel: Alminum grey |
| Dimensions | 420(w) × 144(h) × 361(d) mm |
| Weight | 19.5kg |
| Accessories | 2 × BNC Antenna |
