GB8 48

48-channel support
GB30 mic preamps and EQ section, designed by Soundcraft co-founder Graham Blyth, owe their design heritage to the MH3 and MH4 consoles
High performance 4-band GB30 EQ
4 stereo inputs with 1/4″ line or dual mic pre’s with 48V

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

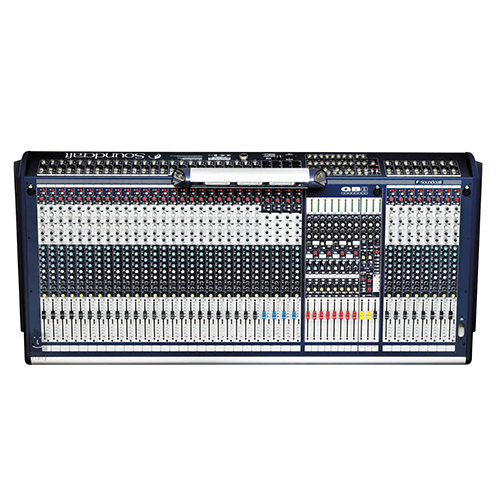

เครื่องผสมสัญญาณเสียง ยี่ห้อ SOUNDCRAFT รุ่น GB8 48

The Soundcraft GB8 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB8 is available in 16, 24, 32, 40 and 48 channel frames to suite specific needs in live sound mixing.

This model is configured with 48 input channels. 48 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 – ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 8 group outputs enabling routing to monitors, external recorders, etc. The GB8 series implements Soundcraft’s GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft’s famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

Features

48-channel support
GB30 mic preamps and EQ section, designed by Soundcraft co-founder Graham Blyth, owe their design heritage to the MH3 and MH4 consoles
High performance 4-band GB30 EQ
4 stereo inputs with 1/4″ line or dual mic pre’s with 48V
Dual mode operation means console can easily be configured from FOH to Monitor with touch of a button
11 true buses including 8 subgroups, left, right and center
8 auxiliary sends with flexible pre/post switching
4 mute groups
11 x 4 matrix allows 4 separate sub-mixes of left, center and group outputs
Internal power supply WITH external PSU link option!
Direct outputs on every mono channel
New true VU overbridge monitors left, right and center

Specifications

Total # Of Inputs	48 Total
Mic/Line Inputs	48 Line: 1/4″ TRS Phone 48 Microphone: 3-pin XLR
Stereo Line Inputs	4 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR Microphone
In-Line Inputs/Returns	No
AUX Sends	8 Aux Sends
AUX Returns	4 Stereo Returns
Inserts	1/4″ TRS Phone – Mono Inputs, Main Output and Subgroup Outputs
BUS (Group) Outputs	8 Subgroups: Balanced 3-pin XLR
2 Trk Master I/O	Mix L/R: Stereo Paired 3-pin XLR Balanced
ALT I/O	ALT Stereo: L/R Stereo Paired 1/4″ Output
Monitor Outputs	Monitor: L/R Stereo Paired 1/4″ TRS Phone
EQ Section	High Filter: 13kHz, +/- 15dB, 2nd order shelving Hi-Mid: 550Hz – 13khz, +/- 15dB, Q=1.5 Lo-Mid: 80Hz – 1.9kHz, +/- 15dB, Q=1.5 Low Filter: 80Hz, +/- 15dB, 2nd order shelving
Solo/Mute	All Input Channels
Channel Level Control	100mm Faders
Trim/Gain Control	Rotary Potentiometers
Phantom Power	+48V Phantom individually switched
Metering	Input Channels: Single tri-color 4-segment LED bargraph Outputs: 11 tri-color 12-segment LED bargraphs, + Meterpod with 3 VU meters (L/R/C)
Frequency Response	20Hz to 20kHz <1dB
Dynamic Range	not specified by manufacturer
Signal-to-Noise Ratio	Measured RMS, 22Hz to 22kHz Bandwidth -128dBu Mic E.I.N. @ unity gain, 150 ohms souce impedance <-82dBu Mix Output, 40 inputs routed to mix <-83dBu Group & Center Outputs <-80dBu Aux Outputs <-89dBu Matrix Outputs
Total Harmonic Distortion (THD)	<0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz
Power Supply	Internal AC PSU – 85V, 270V AC, 50/60Hz universal input Power Consumption Less than 150W
Dimensions	99.2 lbs. (45 kg)
Weight	74.37 x 9.23 x 25.83″ (1889 x 235 x 656mm) (WxHxD)
