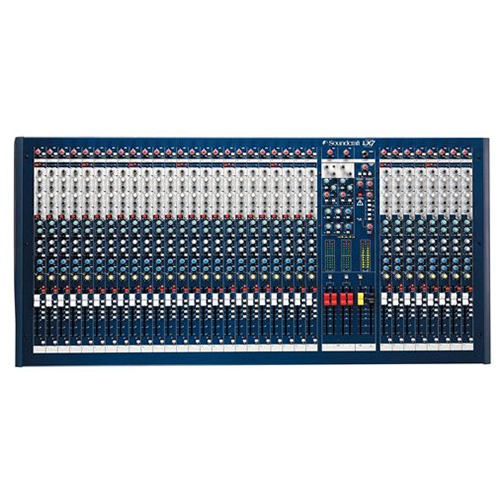

อนาล็อกมิกเซอร์ ยี่ห้อ SOUNDCRAFT รุ่น LX7II 32
The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4″ phone line level inputs, direct outputs are featured on the first 32 channels for recording and monitoring applications.
High quality redesigned microphone preamps are located on every input channel, as well as 1/4″ TRS phone inserts for routing signal to external processors. All LX7 II configurations feature 4 sub group outputs that can be used for routing signal to monitors, recorders etc. 6 Aux sends are featured and provide routing to external effects and signal processors. The LX7 II series features the routing and functionality that will prove suitable for crucial recording and live sound reinforcement.
32 Input Configuration
The LX7 II console is available in three different channel configurations. This model features 32 input channels with 4 sub group outputs.
4 Sub Group Outputs
4 sub group outputs are featured and allow audio signals to be routed to multi track recorders and monitors.
Inserts
Inserts are featured on all input channels and group outputs. Inserts allow routing to and from external signal processors.
Enhanced Mic Preamplifiers
Every input features a Graham Blyth designed microphone preamplifier that delivers exceptional headroom, smooth detail and very low noise floor.
Specifications
| Total # Of Inputs | 32 – Total Line Inputs | |
| Mic/Line Inputs | 32 – Balanced 1/4″ TRS Phone Inputs
32 – Balanced XLR Mic Inputs |
|
| Stereo Line Inputs | 2 – L/R Stereo Paired 1/4″ TRS Phone | |
| In-Line Inputs/Returns | No | |
| AUX Sends | 6 – 1/4″ TRS Phone | |
| AUX Returns | 2 – L/R Stereo Paired 1/4″ TRS Phone ) | |
| Inserts | No | |
| BUS (Group) Outputs | AUX Outputs: 6 – 1/4″ TRS Phone | |
| 2 Trk Master I/O | Main Outputs: L/R Balanced 3-pin XLR male | |
| ALT I/O | Monitor Output: L/R 1/4″ TRS Phone
2 Trk Input: L/R RCA Phono jacks |
|
| Monitor Outputs | Monitor Output: L/R 1/4″ TRS Phone | |
| EQ Section | 100Hz, 18dB per octave
HF: 12kHz, +/-15dB, 2nd order shelving Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1 Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1 LF: 80Hz, +/-15dB 2nd order shelving |
|
| Solo/Mute | Mute & Solo on all channels | |
| Channel Level Control | 100mm Faders | |
| Trim/Gain Control | Sealed Rotary Potentiometers | |
| Phantom Power | +48 Volt | |
| Metering | 12-segment multicolored LED: Group Masters, L/R Master sections
AFL/PFL LED indicator |
|
| Frequency Response | XLR input to any output:
20Hz to 20kHz, +0/-1dB |
|
| Dynamic Range | not specified by manufacturer | |
| Signal-to-Noise Ratio | < -128dBu (150 Ohm source)
22Hz – 22kHz bandwidth, unweighted |
|
| Total Harmonic Distortion (THD) | All measurements at +10dBu output 30dB gain
XLR Input to Direct Output: <0.007% @ 1kHz XLR Input to Mix Output: <0.008% @ 1kHz |
|
| Power Supply | Universal Mains input 85V-270V AC, 50Hz/60Hz
Power Consumption – less than 50W |
|
| Dimensions | 41.4 x 6.5 x 19.8″ (1059 x 164 x 503mm) (WxHxD) | |
| Weight | 50lbs (23kg) | |
| Packaging Info | ||
| Package Weight | 56.6 lb | |
| Box Dimensions (LxWxH) | 45.0 x 25.0 x 12.0″ | |
