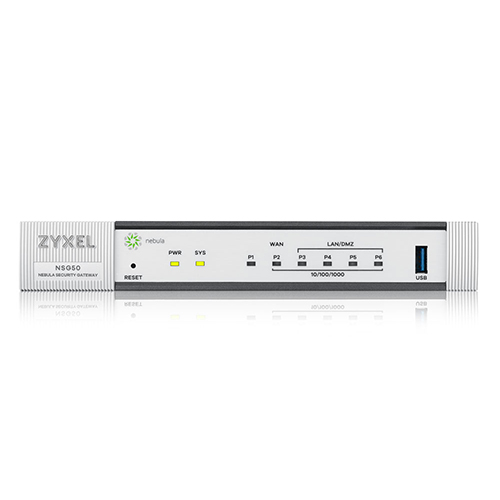

NSG50

The Zyxel Nebula Cloud Managed Security Gateway is built with remote management and ironclad security for organizations with multiple distributed sites. With an extensive suite of security features including ICSAcertified firewall, IPsec VPN connectivity, Intrusion Detection Prevention (IDP) and Application Patrol, Content Filtering as well as Anti-virus the NSG provides deep, extensive protection to meet everything that small- to midsized businesses need.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

Nebula Cloud Managed Security Gateway ยี่ห้อ ZYXEL รุ่น NSG50

The Zyxel Nebula Cloud Managed Security Gateway is built with remote management and ironclad security for organizations with multiple distributed sites. With an extensive suite of security features including ICSAcertified firewall, IPsec VPN connectivity, Intrusion Detection Prevention (IDP) and Application Patrol, Content Filtering as well as Anti-virus the NSG provides deep, extensive protection to meet everything that small- to midsized businesses need.

Features:

Firewall

Stateful packet inspection
VLAN
PPPoE
Static route
Firewall
Intrusion Detection and Prevention (IDP)
Application Patrol

IPSec VPN

Topology: Site-to-site, hubs-andspoke
Encryption: AES (256-bit), 3DES and DES
Authentication: SHA-2 (512-bit), SHA-1 and MD5
Perfect forward secrecy (DH groups) support 1, 2, 5, 14
IPSec NAT traversal
Dead peer detection and relay detection
VPN auto-reconnection
L2TP over IPSec

Intrusion Detection and Prevention (IDP)*

Signature-based
Behavior-based scanning
Automatic signature updates

Application Patrol*

Granular control over the most important applications
Identifies and controls applications and behaviors
Top application usage record

Content Filtering*

Social media filtering
Malicious Website filtering
URL blocking
Blacklist and whitelist support
Dynamic, cloud-based URL filtering database
Unlimited user license support
Customizable warning messages and redirection URL
HTTPs Domain filtering

Anti-Virus*

Supports Anti-Virus signatures
Identifies and blocks over 650,000 viruses
Stream-based Anti-Virus engine
HTTP, FTP, SMTP, POP3 and IMAP4 protocol support
Automatic signature updates
No file size limitation

Streamlined Policy Management

Unified policy management interface
Supported exclusive security features: IDP, Application Patrol, firewall (ACL)
Policy criteria: Source and destination IP address, destination port, time

Networking

Routing mode
Ethernet and PPPoE
NAT
VLAN tagging (802.1Q)
DHCP client/server/relay
Dynamic DNS support
Maximum bandwidth
Bandwidth limit per client IP

Authentication

Microsoft Windows Active Directory integration
External RADIUS user database
Nebula Cloud (Nebula Control Center) authentication

Captive Portal

Web-based authentication
Forced user authentication (transparent authentication)
Sign-on or click-to-continue authentication
Multiple instances of captive portal
Customizable portal templates
Internal or external captive portal redirect
Walled garden support

System Management

Cloud managed
Role-based administration
SNMP v2c (MIB-II)
System configuration rollback
Cloud firmware upgrade

Logging and Monitoring

Comprehensive local logging
Syslog (to up to 2 servers)
Real-time traffic monitoring

Model	NSG50	NSG100	NSG200
Product Name	Nebula Cloud Managed Security Gateway	Nebula Cloud Managed Security Gateway	Nebula Cloud Managed Security Gateway

Hardware Specifications
10/100/1000 Mbps RJ-45 ports	4 x LAN (GbE) 2 x WAN (1x SFP, 1x GbE)	4 x LAN (GbE) 2 x WAN (GbE)	5 x LAN (GbE) 2 x WAN (GbE)
USB ports	1	2	2
Console port	Yes (RJ-45)	Yes (DB9)	Yes (DB9)
Rack-mountable	–	Yes	Yes
Wall-mountable	Yes	–	–
Fanless	Yes	Yes	No
System Capacity & Performance¹
SPI firewall throughput (Mbps)²	300	450	1,250
VPN throughput (Mbps)³	100	150	500
IDP throughput (Mbps)⁴	110	160	500
AV throughput (Mbps)⁴	50	90	300
SP throughput (Mbps, AV and IDP)⁴	50	90	300
Unlimited user	Yes	Yes	Yes
Max. TCP concurrent sessions⁵	20,000	40,000	80,000
Max. TCP Session Rate	2,000	2,000	80,000
Max. concurrent IPsec VPN tunnels⁶	10	40	200
VLAN interface	8	16	16
Key Software Features
Firewall	Yes	Yes	Yes
Virtual Private Network (VPN)	Yes (IPSec, L2TP over IPSec)	Yes (IPSec, L2TP over IPSec)	Yes (IPSec, L2TP over IPSec)
Application Patrol	Yes	Yes	Yes
Intrusion Detection and Prevention (IDP)	Yes	Yes	Yes
Bandwidth management	Yes	Yes	Yes
Logging and Monitoring	Yes	Yes	Yes
Content Filtering	Yes	Yes	Yes
Anti-Virus	Yes	Yes	Yes
WAN Failover	Yes	Yes	Yes
Power Requirement
Power input	12 V DC, 2.0 A max.	12 V DC, 3.0 A max.	12 V DC, 3.33 A max.
Maximum power consumption (Watt)	12.0	19.0	37.0
Heat dissipation (BTU/hr)	40.95	64.83	199.61
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)	216 x 143 x 33/ 8.50 x 5.63 x 1.30	242 x 175 x 36/ 9.53 x 6.89 x 1.42	300 x 178 x 44/ 11.81 x 7.0 x 1.73
Item Weight (kg/lb.)	1.04/2.29	1.25/2.76	2.0/4.4
Packing Dimensions (WxDxH)(mm/in.)	276 x 185 x 98/ 10.87 x 7.28 x 3.86	394 x 240 x 101/ 15.51 x 9.45 x 3.98	351 x 243 x 149/ 13.82 x 9.57 x 5.87
Packing Weight (kg/lb.)	1.41/3.11	2.25/4.96	3.264/7.20
Included accessories	• Power adapter (with plug) • RJ45-RS232 console cable	• Power adapter • Rack mounting kit	• Power cord • Power adapter • Rack mounting kit
Environmental Specifications
Operating temperature	0°C to 40°C / 32°F to 104°F
Operating humidity	10% to 90% (non-condensing)
Storage temperature	-30°C to 70°C / -22°F to 158°F
Storage humidity	10% to 90% (non-condensing)
MTBF (hr)	44,000	815,463.9	787,109.3
Certifications
EMC	FCC Part 15 (Class B), IC, CE EMC(Class B), RCM, BSMI	FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI	FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI
Safety	BSMI, UL	LVD (EN60950-1), BSMI	LVD (EN60950-1), BSMI
