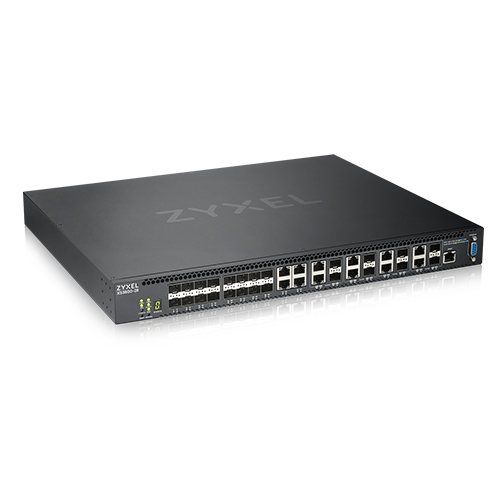

28-port 10GbE L2+ Managed Switch ยี่ห้อ ZYXEL รุ่น XS3800-28
Designed for SME with 10GBASE-T connectivity and advanced L2+/L3 lite features, the Zyxel 10-Gigabit L2+ managed switch XS3800-28 enables applications for aggregation or SME core switching and connection; and it comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers, workstations and NAS. Apart from the aggregation, advanced audio and video equipments are on the trend to migrate to uncompressed high performance ProAV network with 10 Gigabit connectivity. XS3800-28 provides all the necessity that are required for high-bandwidth ProAV network infrastructure. It is also the first 10-Gigabit cloud switch that can step up the cloud network bandwidth.
XS3800-28
28-port 10GbE L3 Aggregation Switch |
|
| Port Density | |
| Total port count | 28 |
| 100M/1G/2.5G/5G/10G Ethernet (RJ-45) | 4 |
| Multi-Gigabit combo (100M/1G/2.5G/5G/10G) RJ-45/(1G/10G) SFP+ | 8 |
| 1G/10G SFP+ | 16 |
| Performance | |
| Switching capacity (Gbps) | 560 |
| Forwarding rate (Mpps) | 416 |
| Packet buffer (byte) | 4 MB |
| MAC address table | 32 K |
| L3 forwarding table | Max. 4 K IPv4 entries Max. 2 K IPv6 entries |
| Routing table | 1K |
| IP interface | 128 |
| Flash/RAM | 64 MB/8 GB |
| Power | |
| Input | Dual power 100 – 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 86.97 |
| Physical Specifications | |
| Dimensions (WxDxH)(mm/in.) | 441 x 360 x 44/17.36 x 14.17 x 1.73 |
| Weight (kg/lb.) | 4.81/10.6 |
| Included accessories |
|
| Environmental Specifications | |
| Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 185°F Humidity 10% to 95% (non-condensing) |
| MTBF (hr) | 656,274.78 |
| Heat dissipation (BTU/hr) | 296.57 |
| Acoustic noise @ 25°C (dBA) | 58.2 |
