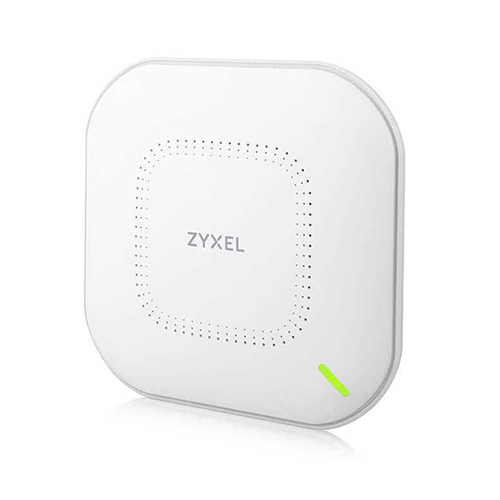

802.11ax (WiFi 6) Dual-Radio PoE Access Point ยี่ห้อ ZYXEL รุ่น NWA110AX

The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products. Also, it uses the second generation transmit beamforming technology incorporating Low End Sensitivity Improvements and Time Domain Channel Smoothing allowing data rates to increase for not only MUMIMO clients, but for all existing ones as well.

The NAX110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi6 has to offer without the need to upgrade existing PoE+ switches.

The NWA110AX with NebulaFlex offers the full flexibility for users to switch among standalone or cloud-managed modes.

• Dual-radio (dual 2×2 MIMO) 802.11ax AP provides maximum data rate of 1775 Mbps
• OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios
• NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed
• Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
• The latest WPA3 security protocol provides safer connectivity
• Next generation beamforming technology delivers maximum coverage

Specifications

Models	NWA110AX
Product name
Description	802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard	IEEE802.11 ax/ac/n/g/b/a
MIMO	MU-MIMO
Wireless speed	2.4GHz: 575Mbps 5GHz: 1200Mbps
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth	20-, 40- and 80-MHz
Conducted typical transmit output power	US (2.4GHz/5GHz): 23/23dBm EU (2.4GHz/5GHz): 20/22dBm
RF Design
Antenna type	2×2 MIMO optimized Antenna
MTBF	635,837
Antenna gain	2.4GHz: Peak Gain 5dBi 5GHz: Peak Gain 6dBi
Minimum Receive sensitivity	Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering	Yes
WDS/Mesh	Yes (V6.10)
Fast roaming	Pre-authentication, PMK caching and 802.11r/k/v
DCS	Yes
Load balancing	Yes
Security
Wireless Security	WEP WPA WPA2-PSK WPA3
Authentication	WPA WPA2-Enterprise EAP IEEE 802.1X RADIUS authentication
Access management	L2-isolation MAC filtering
Networking
IPv6	Yes
VLANs	Yes
WMM	Yes
U-APSD	Yes
DiffServ marking	Yes
Management
Operating mode	Nebula Cloud managed Standalone
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration
Zyxel Wireless Optimizer	WiFi AP planning WiFi coverage detection Wireless health management
Web UI/ CLI	Yes
SNMP	Yes
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 180 x 180 x 39 / 7.09 x 7.09 x 1.54 Weight (g/lb.) 453g/1
Packing	Dimensions (WxDxH)(mm/in.) 229 x 216 x 64 / 9.02 x 8.5 x 2.52 Weight (g/lb.) 770g/1.7
Included accessories	Mount plate Mounting screws power adapter
Physical Interfaces
Ethernet port	1 x 10/100/1000M LAN
Power	PoE (802.3)at: power draw 17 W DC input : 12 VDC 1.5A
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing)
Storage	Temperature -30°C to 70°C/-22°F to 158°F Humidity 10% to 90% (non-condensing)
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438
Safety	Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
