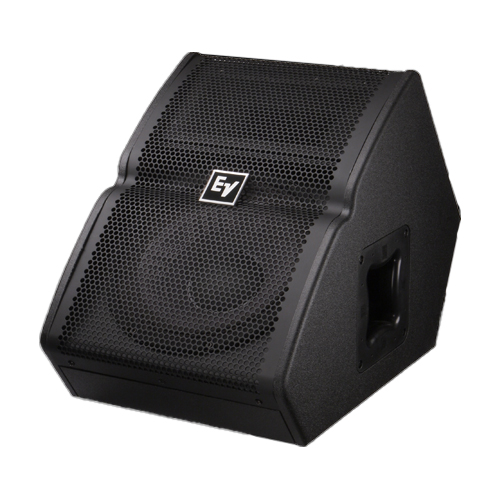

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น TX1152FM

15″ passive floor monitor

• Two-way, high-output design
• Vented LF enclosure
• Neutrik Speakon paralleled pass-through connectors
• Two integrated handles
• Ideal for small-to-medium stages
• Signal Synchronized Transducers for woofer/tweeter alignment
• Ultra low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Constant-directivity 90º H x 50º V horn
• Integrated 24 dB/octave crossover with HF protection
• 100 dB sensitivity, 133 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Black EVCoat finish

SPECIFICATIONS

• Color:    Black
• Input Connections:      Parallel Neutrik® NL4
• Speaker Type:   Fullrange
• Frequency Response (-3 dB):       65 – 20000 Hz
• Frequency Response (-10 dB):    45 – 20000 Hz
• Internal Crossover:          Yes
• Recommended High-Pass Frequency:     45 Hz
• Sensitivity 1 W/1 m:     100 dB
• Max. SPL/1m (calc):     133 dB
• Coverage (Nominal -6 dB) H:        90 °
• Coverage (Nominal -6 dB) V:        50 °
• Rotatable Horn: No
• System Power Handling (Continuous/Program/Peak):     500 Watts
• LF Transducer:   SMX2151
• HF Transducer:  DH3
• Crossover Frequency:    1750 Hz
• Nominal Impedance (Passive):   8 Ω
• Minimum Impedance:   6.2 Ω
• Enclosure Material:      Plywood and MDF with EVCOAT
• Flying:   No
• Height: 475 mm (18.7″)
• Width:  439 mm (17.28″)
• Depth:  655 mm (25.79″)
• Weight Net:   23.5 kg (51.81 lbs)
