AT-HDVS-150-TX-PSK
- 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
- Local AC powered version of AT-HDVS-150-TX – ideal for extension to an HDBaseT-equipped projector
- HDBaseT transmitter for AV and control up to 230 feet (70 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with a compatible HDBaseT-equipped display or receiver)
- Automatic display control (when connected to the AT-HDVS-150-RX)
- Automatic input selection
- Front panel input selection and display on/off control
AT-HDVS-150-TX-WP
- US two-gang enclosure for wallplate openings
- 2×1 HDBaseTTM switcher with HDMI® and VGA inputs
- Designed for point-to-point extension to the AT-HDVS-150-RX scaling receiver
- HDBaseT transmitter for AV, power, and control up to 230 feet (70 meters)
- Remotely powered via PoE (Power over Ethernet)
- Automatic display control (when connected to the AT-HDVS-150-RX)
- Automatic input selection
- Front panel input selection and display on/off control – optional AT-HDVS-TX-WP-NB faceplate available without control buttons

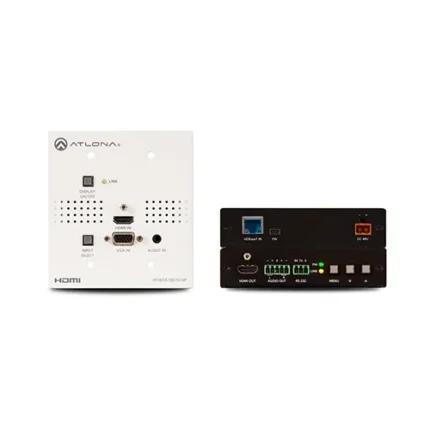

AT-HDVS-150-WP-KIT
- HDBaseTTM extender kit for AV, power, and control up to 230 feet (70 meters)
- US two-gang enclosure for wallplate openings
- 2×1 HDBaseT switcher with HDMI® and VGA inputs
- HD video scaler with HDMI output and input resolution control
- Transmitter powered by receiver via PoE (Power over Ethernet)
- Automatic input selection and automatic display control
- Front panel input selection and display on/off control
- RS-232 control for switcher, scaler, and display
- Audio de-embedding
- On-screen display with menu button controls
AT-HDVS-200-TX
- 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
- HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-OME-RX11)
- Remotely powered via PoE (Power over Ethernet)
- Automatic input selection and automatic display control
- Front panel input selection, display on/off, and volume control
- TCP/IP and RS-232 control
AT-HDVS-200-TX-PSK
- 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
- Local AC powered version of AT-HDVS-200-TX – ideal for extension to an HDBaseT-equipped projector
- HDBaseT transmitter for AV, Ethernet, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with a compatible HDBaseT-equipped display or the AT-OME-RX11)
- Automatic input selection and automatic display control
- Front panel input selection, display on/off, and volume control
- TCP/IP and RS-232 control
AT-HDVS-200-TX-WP
- US two-gang enclosure for wallplate openings
- 2×1 HDBaseTTM switcher with HDMI® and VGA inputs
- HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-OME-RX11)
- Remotely powered over HDBaseT
- Automatic input selection and automatic display control
- Front panel input selection, display on/off, and volume control
- TCP/IP and RS-232 control
- Interchangeable faceplate included with Ethernet port opening
AT-HDVS-200-TX-WP-BLK
- US two-gang enclosure for wallplate openings
- 2×1 HDBaseTTM switcher with HDMI® and VGA inputs
- HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-OME-RX11)
- Remotely powered over HDBaseT
- Automatic input selection and automatic display control
- Front panel input selection, display on/off, and volume control
- TCP/IP and RS-232 control
- Interchangeable faceplate included with Ethernet port opening
AT-HDVS-210H-TX-WP
- US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
- 2×1 HDBaseTTM switcher with HDMI® inputs
- Also available together with receiver – AT-HDVS-210H-TX-WP-KIT
- HDBaseT transmitter for AV, power, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Remotely powered via PoE (Power over Ethernet)
- Automatic input selection and automatic display control
- TCP/IP and RS-232 control
AT-HDVS-210H-TX-WP-KIT
- HDBaseT™ extender kit for AV, power, and control up to 330 feet (100 meters)
- US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
- 2×1 HDBaseT switcher with HDMI® inputs
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Transmitter powered by receiver via HDBaseT
- Automatic input selection and automatic display control
- Audio de-embedding at receiver
AT-HDVS-CAM
- Designed for soft codec applications with AV systems supporting USB interfacing and extension
- USB 2.0 interface for video
- Universal PC compatibility through standard UVC 1.1 (USB Video Class) driver
- High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
- Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
- Available in black or white
AT-HDVS-CAM-HDBT-BK
- Designed for video conferencing and other applications such as lecture capture and distance learning
- HDBaseT output for extending video, power, and camera control
- Remote powering over HDBaseT – local powering available with included power supply
- High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
AT-HDVS-CAM-HDMI-BK
The Atlona AT-HDVS-CAM-HDMI is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features an HDMI output, as well as a USB 2.0 interface for video and camera control. Simultaneous video output is available over both interfaces. Through USB, the HDVS-CAM-HDMI seamlessly integrates with the Omega™ Series and AT-OME-MS42-KIT for a complete, automated conferencing system that includes AV and USB extension. The HDMI output is ideal for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. The HDVS-CAM-HDMI delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz over HDMI and 1080p @ 30 Hz for USB 2.0, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. Also available is H.264 or H.265 streaming over IP with support for RTMP and RTSP protocols. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDMI is available in black or white.
The HDVS-CAM-HDMI is part of a family of PTZ cameras that includes the HDVS-CAM with USB 2.0 interface, as well as the HDVS-CAM-HDBT with HDBaseT output. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.
