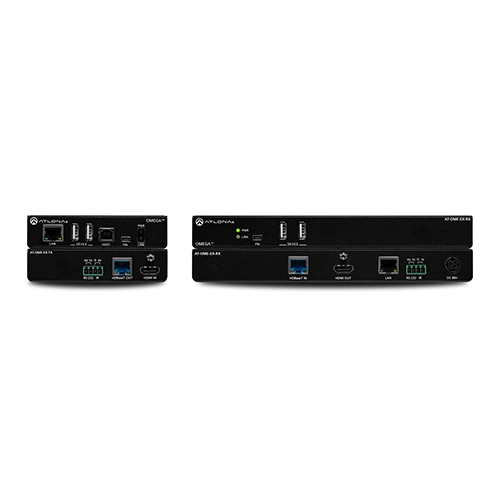

Extends ยี่ห้อ Avance รุ่น AT-OME-EX-KIT
Specifications
| Video | |||||||||||
| HDMI Specification | HDMI 2.0, HDCP 2.2 | ||||||||||
| TMDS Clock | 300 MHz | ||||||||||
| UHD/HD | 4096×2160(DCI)@60*/30/24 Hz, 3840×2160(UHD)@60*/50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz | ||||||||||
| VESA | 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480 | ||||||||||
| Color Space | YUV, RGB | ||||||||||
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | ||||||||||
| Color Depth | 8-bit, 10-bit, 12-bit | ||||||||||
* 4K/UHD @ 60 Hz only supports 4:2:0.
| Audio | |||||||||||
| Pass-through | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X | ||||||||||
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | ||||||||||
| Bit Depth | Up to 24-bit | ||||||||||
| USB | |||||||||||
| Signal | 2.0 | ||||||||||
| Maximum Data Rate | 120 Mbps | ||||||||||
| Control | |||||||||||
| CEC | Pass-through | ||||||||||
| RS-232 | Pass-through from control system to sink device; supports baud rates from 2400 to 115200 | ||||||||||
| IR | Pass-through from control system to sink device | ||||||||||
| IP | Pass-through from control system to sink device up to 100 Mbps over HDBaseT | ||||||||||
| Connectors | |||||||||||
| HDMI IN | 1 – Type A, 19-pin female (transmitter) | ||||||||||
| HDMI OUT | 1 – Type A, 19-pin female (receiver) | ||||||||||
| FW | 1 – mini-USB (transmitter / receiver) | ||||||||||
| HDBaseT IN | 1 – RJ45 (transmitter) | ||||||||||
| HDBaseT OUT | 1 – RJ45 (receiver) | ||||||||||
| HOST | 1 – USB Type-B (transmitter) | ||||||||||
| DEVICE | 2 – USB Type-A (transmitter / receiver) | ||||||||||
| LAN | 1 – RJ45, 10/100 Mbps (transmitter / receiver) | ||||||||||
| RS-232 / IR | 1 – captive screw, 4-pin (transmitter / receiver) | ||||||||||
| DC 48V | 1 – 3-pin DIN (receiver) | ||||||||||
| Indicators and Controls | |||||||||||
| PWR LED indicator | 1 – LED, green | ||||||||||
| LINK LED indicator | 1 – LED, yellow | ||||||||||
| Resolution / Distance | 4K/UHD – Feet / Meters | 1080p – Feet / Meters | ||
| HDMI IN/OUT | 15 | 5 | 30 | 10 |
| CAT5e | 295 | 90 | 330 | 100 |
| CAT6/6a/7 | 330 | 100 | 330 | 100 |
| Power | |||||||||||
| Consumption | 32.35 W | ||||||||||
| USB Power | 2.5 W per USB device interface | ||||||||||
| External Power Supply (Receiver) | Input: 100 – 240 V AC, 50/60 Hz Output: 48 V, 0.83 A DC |
||||||||||
| Safety | CE, FCC, cULus | ||||||||||
| Environmental | |||||||||||
| Operating Temperature | 0° to 122° F 0° – 50° C |
||||||||||
| Storage Temperature | -4° to +140° F -20° to +60° C |
||||||||||
| Operating Humidity (RH) | +20 to +90%, non-condensing | ||||||||||
| TX Dimensions (H x W x D) | Inches | Millimeters |
| Unit | 1.02 x 4.29 x 5.00 | 26 x 109 x 127 |
| Power Supply | 1.42 x 1.81 x 4.41 | 36 x 46 x 112 |
| RX Dimensions (H x W x D) | Inches | Millimeters |
| Unit | 1.02 x 4.29 x 5.00 | 26 x 109 x 127 |
| Power Supply | 1.42 x 1.81 x 4.41 | 36 x 46 x 112 |
| Chassis | |||||||||||
| Weight | TX: 0.88 lb, 0.40 kg RX: 0.94 lb, 0.43 kg |
||||||||||
| Safety | CE, RoHS, FCC | ||||||||||
