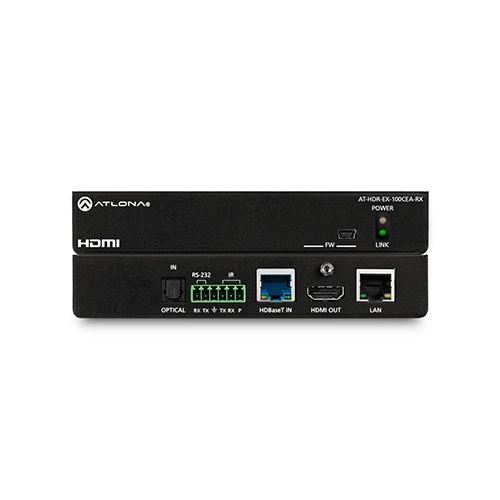

Extends ยี่ห้อ Avance รุ่น AT-HDR-EX-100CEA-RX
Specifications
| Video | ||||
|---|---|---|---|---|
| Signal | Input – HDBaseT Output – HDMI |
|||
| Copy Protection | HDCP 2.2 | |||
| Pixel Clock | 600 MHz | |||
| UHD/HD/SD | 4096×2160@60/50/30/25/24Hz 3840×2160@60/50/30/25/24Hz 1920x1080p@60/59.9/50/30/29.97/25/24/23.98Hz 1920x1080i@30/29.97/25Hz |
720p@60/59.94/50Hz 576p@50Hz 576i@25Hz 480p@60/59.96Hz 480i@30Hz |
||
| VESA All resolutions are 60Hz |
2560×2048 2560×1600 2048×1536 1920×1200 1680×1050 1600×1200 1600×900 1440×900 1400×1050 |
1366×768 1360×768 1280×1024 1280×800 1280×768 1152×768 1024×768 800×600 640×480 |
||
| Color Space | YUV, RGB | |||
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | |||
| Color Depth | 8-bit, 10-bit, 12-bit | |||
| HDR | Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision™ @ 60 Hz(1) | |||
| Audio | ||||
|---|---|---|---|---|
| HDMI / HDBaseT Pass-Through Formats |
PCM 2.0 LPCM 5.1 LPCM 7.1 Dolby® Digital Dolby Digital Plus™ |
Dolby TrueHD Dolby Atmos® DTS® Digital Surround™ DTS-HD Master Audio™ DTS:X® |
||
| Bit Depth | Up to 24 bits | |||
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | |||
| Control | ||||
|---|---|---|---|---|
| RS-232 | Pass through, up to 115200 baud | |||
| IR | Pass through, 30kHz to 60kHz | |||
| CEC | Pass through | |||
| Resolution / Distance | 4K/UHD Feet | 4K/UHD Meters | 1080p Feet | 1080p Meters |
|---|---|---|---|---|
| HDMI IN/OUT | 15 | 5 | 30 | 10 |
| CAT5e | 295 | 90 | 330 | 100 |
| CAT6/6a/7 | 330 | 100 | 330 | 100 |
| Buttons and Indicators | ||||
|---|---|---|---|---|
| Function Indicators: POWER LINK |
1 x LED, green 1 x LED, yellow |
|||
| Connectors | ||||
|---|---|---|---|---|
| HDMI OUT | 1 x Type A, 19-pin female | |||
| HDBaseT IN | 1 x RJ45 | |||
| OPTICAL IN | 1 x TOSLINK™ | |||
| RS-232 / IR | 1 x 6-pin captive screw | |||
| UTILITY | 1 x Mini-USB | |||
| LAN | 1 x RJ45 | |||
| Temperature | Fahrenheit | Celsius | ||
|---|---|---|---|---|
| Operating | +32 to +122 | 0 to +50 | ||
| Storage | -4 to +140 | -20 to +60 | ||
| Operating (RH) | 20% to 90%, non-condensing | |||
| Power | ||||
|---|---|---|---|---|
| Consumption | 10.4 W | |||
| BTU/h | 35.5 | |||
| PoE | Powered by compatible 48V transmitters | |||
| Dimensions (H x W x D) | Inches | Millimeters | ||
|---|---|---|---|---|
| Unit | 1.02 x 5.74 x 3.81 | 26 x 146 x 97 | ||
| Weight | Pounds | Kilograms | ||
|---|---|---|---|---|
| Unit | 0.873 | 0.396 | ||
| Certification | ||||
|---|---|---|---|---|
| Device | CE, FCC | |||
| Compliance | ||||
|---|---|---|---|---|
| NDAA-899 | Yes | |||
| Warranty | ||||
|---|---|---|---|---|
| Device | To view the product warranty, use the following | |||
